What Is Hamming Code?

The Hamming code is an error-detecting and error-correcting method designed by Richard W. Hamming in 1950 while he was working at Bell Labs. This error correction code works by adding extra parity bits to the data being sent. The Hamming code allows the receiver to check that the data was received correctly and determine whether it has been corrupted. If a bit is corrupted, the Hamming code detects the corrupted bit and corrects it without resending the data.

Hamming code is widely used when retransmission is expensive or impossible, such as in satellite communication, RAM error correction (ECC memory), and embedded systems.

Get Certifications in AWS, Azure, and Google CloudCloud Architect Master's ProgramExplore Program

Important Terms for Hamming Code

• Data bits (d): The actual information bits being transmitted.
• Redundant bits/parity bits (r): Extra bits added to the data to enable error detection and correction. The number of redundant bits needed is found using the formula 2^r ≥ d + r + 1.
• Parity: A method of appending bits so that the total count of 1s in a group is either always even (even parity) or always odd (odd parity).
• Even parity: The parity bit is set so that the total number of 1s in the group (data bits + parity bit) is even.
• Odd parity: The parity bit is set so that the total number of 1s in the group is odd.
• Hamming distance: The number of bit positions in which two binary strings of equal length differ. It is the theoretical basis for how many errors a code can detect and correct.

Hamming Distance vs. Hamming Code

These terms are related, but not the same, and mixing them up is a common source of confusion.

• Hamming distance is a measure: the number of positions where two equal-length binary strings differ. For example, the Hamming distance between 1011101 and 1001001 is 2, because they differ at exactly two bit positions.
• Hamming code is a technique: a scheme for adding redundant bits to a message so that all valid codewords are spaced far enough apart, in terms of Hamming distance, that errors can be detected and corrected.

The minimum Hamming distance between any two valid codewords in a code determines what that code can do:

The standard Hamming code is designed to have a minimum Hamming distance of 3 between valid codewords, so it can detect up to 2-bit errors but correct only 1-bit errors. If two bits flip at once, the code can detect an error, but it cannot reliably determine which bits to fix, and it may even correct the codeword to the wrong value.

How Many Errors Can Hamming Code Detect and Correct?

This is one of the most searched questions about Hamming code, and the direct answer is:

• Detects: up to 2-bit errors
• Corrects: exactly 1-bit errors

If exactly one bit is flipped during transmission, Hamming code detects the error and identifies the faulty bit's position so it can be automatically corrected. If two bits are flipped, Hamming code can detect an error (the parity bits will not match). Still, it cannot identify which two bits are incorrect, and applying the Hamming error-correction algorithm to a two-bit error will silently fail. This is why Hamming code is best suited to environments where single-bit errors are the likely failure mode (such as memory chips or short-range transmission links) and is not suitable for noisy channels where burst errors are more common.

Build and Deploy Azure Applications Like a Pro!With Our Azure Cloud Architect Masters ProgramEnroll Now

Working of Hamming Code

Implementing Hamming code follows four steps:

1. Calculate the number of redundant bits. Using the formula 2^r ≥ d + r + 1, where d is the number of data bits and r is the number of redundant bits, find the smallest r that satisfies the inequality.
2. Position the redundant bits. Place redundant bits at positions that are powers of 2 (1, 2, 4, 8, 16, ...), counting from the left, position 1. All other positions hold the data bits.
3. Calculate each parity bit. Each parity bit covers a specific set of positions, determined by the binary representation of the position numbers, and is set to make the count of 1s in its group even (even parity) or odd (odd parity).
4. Verify and correct at the receiver. The receiver recalculates each parity group. If all checks pass, the data is assumed error-free. If one or more checks fail, the pattern of failures points to the exact position of the flawed bit, which is then flipped to correct it.

How Parity Bit Positions Are Calculated

Each parity bit checks a specific group of bit positions, based on the binary representation of the position index. A position is covered by a given parity bit if that position's binary form has a 1 in the corresponding bit place:

• P1 (position 1, binary 0001) checks all positions whose binary representation has a 1 in the least significant bit: 1, 3, 5, 7, 9, 11, 13, ...
• P2 (position 2, binary 0010) checks all positions whose binary representation has a 1 in the second bit: 2, 3, 6, 7, 10, 11, 14, 15, ...
• P4 (position 4, binary 0100) checks all positions whose binary representation has a 1 in the third bit: 4, 5, 6, 7, 12, 13, 14, 15, ...
• P8 (position 8, binary 1000) checks all positions whose binary representation has a 1 in the fourth bit: 8, 9, 10, 11, 12, 13, 14, 15, ...

This pattern extends for any additional parity bits (P16, P32, and so on) needed for longer data streams.

Hamming Code Algorithm (Encoding and Decoding)

Encoding (Sender Side):

1. Determine r using 2^r ≥ d + r + 1.
2. Number the bit positions from 1 to d + r, left to right.
3. Place the data bits into the non-power-of-2 positions, in order.
4. For each parity bit position, count the 1s in its associated group of positions (excluding the parity bit itself) and set the parity bit so the group's total number of 1s matches the chosen parity (even or odd).
5. Transmit the complete sequence, including data and parity bits.

Decoding (Receiver Side):

1. Recalculate each parity group exactly as the sender did, this time including the received parity bit in the count.
2. For each group, record a 0 if the parity still holds and a 1 if it does not.
3. Read the recorded bits together, from the highest-order parity check to the lowest (for example, C8 C4 C2 C1), as a binary number.
4. If the result is 0, no error occurred. If the result is non-zero, that number is the position of the flipped bit.
5. Flip the bit at that position to correct the error.

Develop the technical skills needed to design secure, scalable, and reliable cloud solutions. Enroll in Simplilearn's Cloud Architect Master's Program and take the next step in your cloud career.

Example for Hamming Code (Even Parity)

Consider the 7-bit data 1011010 that needs to be transmitted with error correction. This example uses 7 data bits and, as shown below, 4 redundant bits, making it a form of the well-known Hamming(11,7) code (a larger relative of the commonly cited Hamming(7,4) code, which encodes 4 data bits using 3 parity bits).

Step 1: Calculate Redundant Bits

Using 2^r ≥ d + r + 1 with d = 7:

• Try r = 4: 2^4 = 16, and d + r + 1 = 7 + 4 + 1 = 12. Since 16 ≥ 12, r = 4 works.

Step 2: Position the Bits

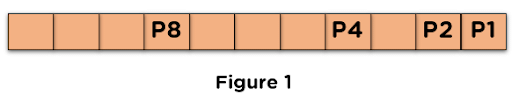

Total length = d + r = 11 bits. Positions 1, 2, 4, and 8 hold the parity bits (P1, P2, P4, P8). The data bits 1011010 are placed into the remaining positions (3, 5, 6, 7, 9, 10, 11) in order, from position 11 down to position 3, skipping the parity positions:
