An Introduction to Power BI Dashboard

Power BI is an increasingly popular business intelligence and visualization tool from Microsoft that enables data analytics and data visualization. Ron George initially designed Power BI in the summer of 2010. The initial release was available for public download the following year. Power BI Desktop, Power BI Service, Power BI Gateway, Power BI Report Server, and Power BI Mobile Apps are the key components of the platform.

In this article, we’ll discuss the basics of Power BI Desktop and how to create a Power BI dashboard using Power BI Desktop. Then, we’ll publish this dashboard on Power BI Service.

What is Power BI?

Microsoft’s Power BI is a business and data analytics service that enables professionals to process, analyze, and visualize vast volumes of data. It helps extract insights, draw conclusions, and share results in the form of reports and dashboards across various departments. It provides an easy drag and drops feature with a range of interactive data visualizations to generate reports and dashboards.

Your Data Analytics Career is Around The Corner!

Data Analyst Master’s ProgramExplore Program
Your Data Analytics Career is Around The Corner!

Features of Power BI

  • Power BI is faster and performs better when there is a smaller volume of data
  • Power BI provides an interface based on Microsoft Office 365 that is user-friendly, intuitive, and easy to understand
  • Using Power BI, you can work with several data sources, such as Excel, Text/CSV, JSON, SQL Server databases, IBM DB2, MySQL, etc.
  • Power BI can connect with the R programming language, and it also supports various Data Analysis Expression (DAX) functions and measures
  • Power BI has functional integration with the Microsoft Azure cloud platform. It helps to analyze insights and patterns in datasets

What is a Power BI Dashboard?

Power BI dashboards are single-page documents, often referred to as canvas, which illustrate a story through visualizations. A well-designed dashboard consists only of the highlights of a story. This is due to the fact that it is limited to one page. For more information, readers can view related reports. Power BI is the only service that offers dashboards.

A single page visualization with multiple charts and graphs to tell a story is called a Power BI dashboard. This one-page visualization in a dashboard is also known as a Canvas. The Power BI dashboard is a feature only available in Power BI Service. Since a Power BI dashboard is limited to one page, it only contains the highlights of a story. You cannot create a dashboard on Power BI Desktop.

power-bi-dashboard.

Fig: Power BI Dashboard on Power BI Service

In a dashboard, visualizations are generated from reports, and each report is based on one dataset. The visualizations present on the dashboard are called tiles, and report designers pin these tiles to the dashboard.

Advantages of a Power BI dashboard

  • A Power BI dashboard enables users to analyze reports and view all important metrics at a glance
  • Using a Power BI dashboard, users can create visualizations from multiple datasets or multiple reports
  • You can customize dashboards to meet the requirements of any enterprise
  • Power BI dashboards can be embedded into applications to provide a unified user experience
  • You can instantly share a dashboard with other colleagues in your organization

Your Data Analytics Career is Around The Corner!

Data Analyst Master’s ProgramExplore Program
Your Data Analytics Career is Around The Corner!

Power BI Dashboards vs Reports

Capability

Dashboards

Reports

Pages

Has only one page

Has one or more pages

Data Sources

Contains one or more reports and one or more datasets per dashboard

Contains a single dataset per report

Filtering

It can’t filter or slice the view

It can filter, highlight and slice the view in various ways

Availability on Power BI Desktop

Dashboards are not available in Power BI Desktop

Can create reports on Power BI Desktop

Featured

You can set one dashboard as your "featured" dashboard

Cannot create a featured report

How to Create a Dashboard in Power BI?

Building reports on Power BI Desktop and publishing them to Power BI Service is one of the best ways to understand how a Power BI dashboard works.

For our demo, we’ll be looking at a sales dataset that contains product sales information throughout the United States. The dataset contains various customer-related details, including customer names, order and shipment dates, product names, product categories and subcategories, profit made, and so on. This dataset is commonly known as a Sample Superstore dataset. We’ll analyze this dataset to compare sales and profit from each segment, year, and quarter.

We’ll also create a map to show the sales across different states in the USA.

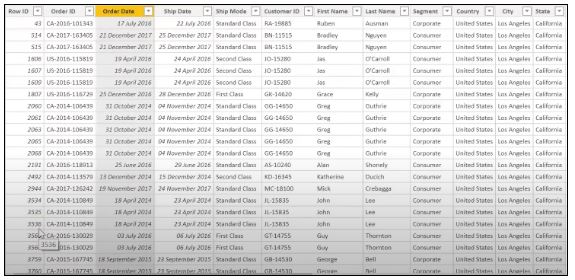

The following is the dataset that we’ll be using to create the dashboard:

sales-data

Fig: Sales Data

First, we will create three separate cards to calculate the total sales, profit, and quantity sold. From the visualization panel on the right, click on “card,” which will create an empty card.

sales-dashboard

Drag the sales column on to the fields, which will give you the total amount of sales of all products. You can edit this card by changing the font size and the color of the sales value. Also, you can add a title to this card. Similarly, you can create two more cards for total profit and total quantity sold by dragging respective columns on to fields.

After that, we’ll add a slicer to our visualization to slice the data based on the “Order Date” column. This will help us filter the data and view it according to the need.

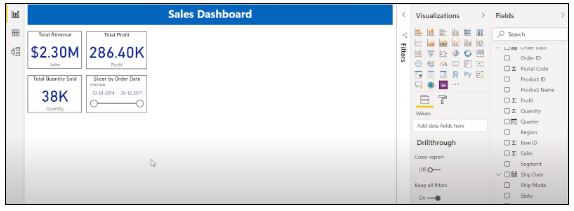

 cards-slicers

Fig: Cards and Slicers

Suppose you are looking to visualize and analyze sales and profit over a certain number of years. In order to do this, you’ll create a line and stacked column chart. Select the line and stacked column chart from the visualization panel and drag the “Order Date” column on to “Shared Axis.” Put “Sales” under “Column” values, and insert the “Profit” column into “Line” values. That will generate the graph. You can edit the color of the bars and the line under the format tab.

chart-above

In the chart above, the bars represent the sales, and the line represents the profit. The graph reveals that the highest amount of sales and profit occurred in 2017.

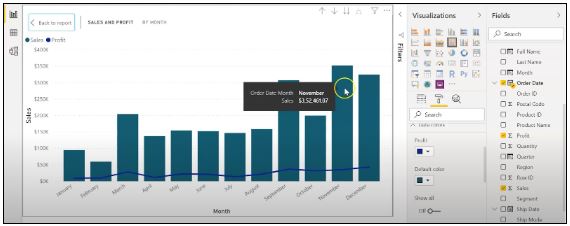

Power BI Desktop provides an excellent feature to drill down into the data and visualize the graph in terms of each quarter, month, and day. This option is available at the top when you navigate to a specific chart.

/sales-profit

Fig: Sales and profit by each month

From the visualization above, we can see that November had the most sales.

You can also add the labels to the graph by clicking the “Format” tab and switching on the data labels.

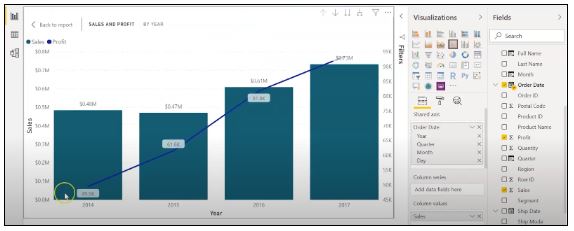

adding-labels

Fig: Adding labels to the graph

Now, let’s create a clustered column chart by analyzing annual and quarterly sales.

Your Data Analytics Career is Around The Corner!

Data Analyst Master’s ProgramExplore Program
Your Data Analytics Career is Around The Corner!

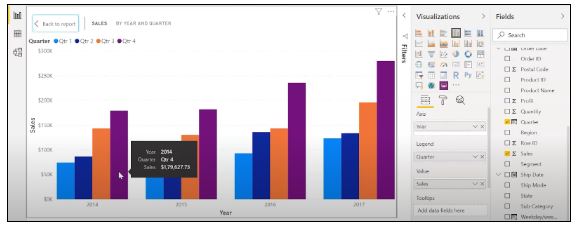

From the Visualizations menu, select the “Clustered Column Chart.” Add the “Year” column onto the axis. Take the “Quarter” columns under “Legend,” and add the “Sales” columns to “Value.”

clustered-bar-chart

Fig: The clustered bar chart

The graph above shows that the first quarter of every year had the lowest sales numbers, while the fourth quarter was consistently the highest. You also have the option to change the colors on your graph to make it more visually appealing.

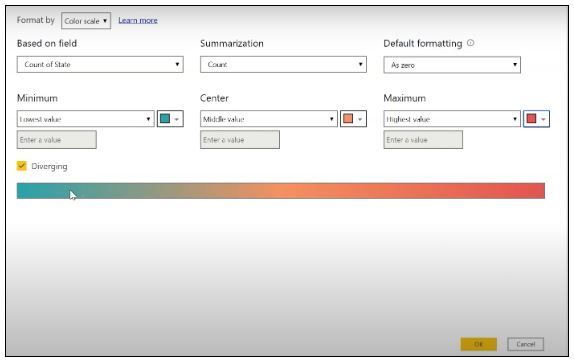

Now, let’s analyze the sales for each state in the US. To do this, we’ll use a filled map. Select a filled map from the visualizations panel. Add the “State” column to “Location.” Drag the “Sales” column onto “Tooltips.” To edit the colors, click on the “Format” tab, and choose “Data Colors.” Select the conditional formatting option and add the range of colors that you’d like.

formatting-colors

Fig: Formatting colors based on the sales

We have defined our color scheme for the lowest, middle, and highest sales values. The states colored green made the lowest amount of sales. The states marked in orange or red, which are California, Texas, and New York, made the highest amount of sales. Similarly, you can also build a map to see the profit and the units that each state sold.

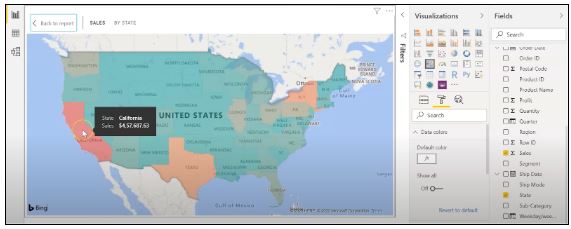

/sales-state

Fig: Sales by each State

The following is what our report looks like so far. We have gone over creating cards, slicers, line and clustered column charts, clustered bar charts, and filled maps.

sales-report

Fig: Sales report

Next, let’s look at how to create a donut chart to analyze sales and profit by segment.

Under visualizations, click on the donut chart. Under legend, add the segment column. Drag the “Sales” column on to “Values” and “Profit” on to “Tooltips.”

donut-chart

Fig: Donut chart for Sales and Profit

The donut chart above indicates that the consumer segment had the highest amount of sales and profit, while the home office segment had the lowest. You can format the visualization as per your requirements to make it more visually attractive.

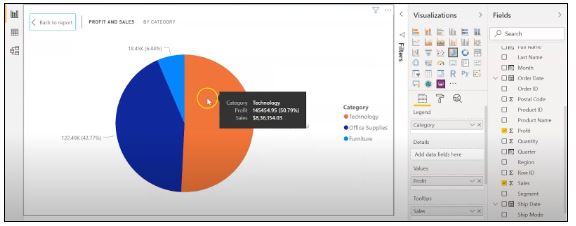

Now, we’ll move on to creating a pie chart, which will enable us to visualize the sales for each product category. Move the “Category” column on to “Legend” and add the “Profit” column under “Values.” Drag the “Sales” column on to “Tooltips.”

/pie-chart

Fig: Pie Chart for Profit and Sales

The technology category generated the highest amount of sales and profit, while furniture made the lowest. The “format” tab is used to change the colors and make any necessary edits.

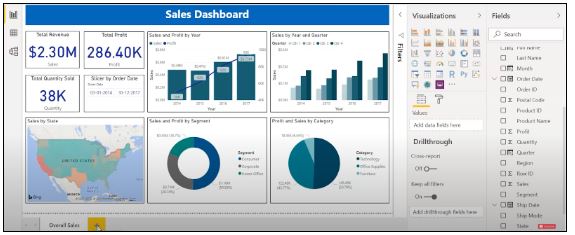

The following is what the final overall sales report will look like:

overall-sales-report

Fig: Overall Sales Report

Let us now visualize our data at a more granular level by analyzing sales, profit, and units sold at regional and state levels.

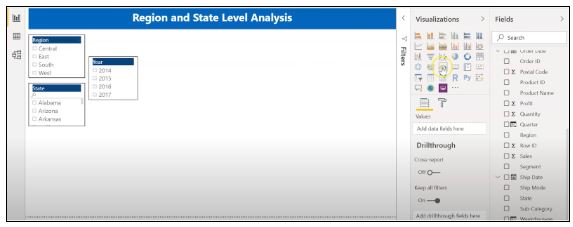

First, we’ll create three slicers to filter our data. Click on the slicer from the visualizations panel and add the “Region” column on to “Field” to create a regional slicer. Similarly, you can create a state and year slicer. You also have the option to edit the slicers to change the font size, increase the size of the text, and add a background color.

slicers-filter-data

Fig: Slicers to filter data

We’ll now create a table to check the quantity and the profit made in each city. Under the “Visualizations” tab, select “Table”. Add the “City” column under “Values,” followed by quantity and the “Profit” column. Add a background color to the column headers and increase the size of the font. You can filter the data by selecting the items from each of the slicers.

Your Data Analytics Career is Around The Corner!

Data Analyst Master’s ProgramExplore Program
Your Data Analytics Career is Around The Corner!

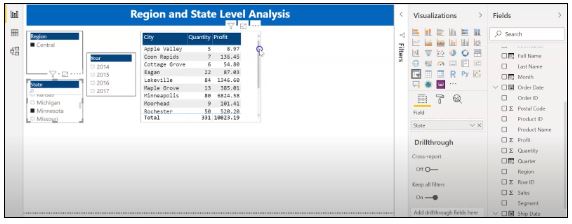

Below, we have selected the central region and selected the state of Minnesota. In the table, you can see all the cities in the state of Minnesota, the quantity sold, and the profit they made.

creating-a-table

Fig: Creating a Table in Power BI

Sorting a table is another capability that Power BI Desktop supports. This gives users the option to sort the column in a table in their order of preference.

Now, let’s build a clustered bar chart to analyze the sales for each product category across different states. Select the clustered bar chart from the visualizations panel. Take the “State” column on the axis, “Category “columns on to the legend, and “Sales” on to “Value.”

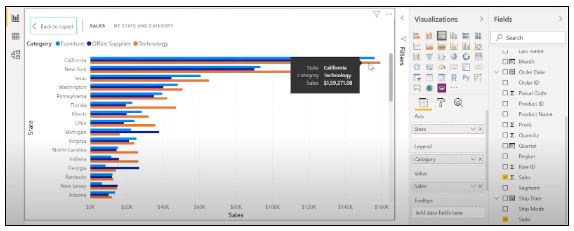

cluster-bar-2

Fig: Clustered Bar Chart

Among the three categories of products, the state of California made the highest sales for all categories.

Next, let’s verify the annual profit by category using an area chart. Select the area chart from visualizations and drag the “Year” column on to the axis, the “Category” column on to the legend, and “Profit” on to “Values.”

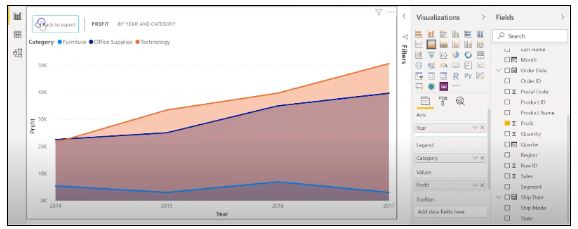

area-chart.

Fig: Area chart using Power BI

You can analyze the profit and quantity that each product category and subcategory sold. You can also create a funnel. Users can explore their many options through the dashboard.

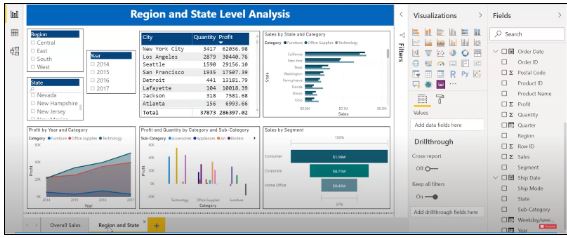

The following is what our report for the region and state-level analysis will look like::

region-state-report

Fig: Region and State Level Report

If you want to go in detail and create a more granular level report, you can do that by creating a report based on the products’ categories and subcategories, as shown in the report below. You can use category and subcategory as your slicers and create different line charts, bubble charts, treemaps, and pie charts to visualize the data.

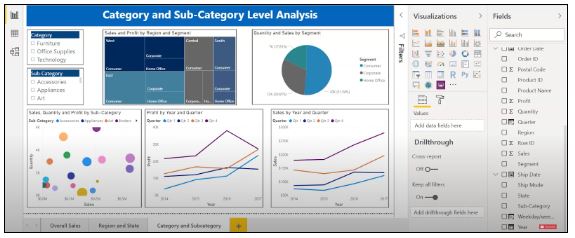

category-level-report

Fig: Category and subcategory Level Report

We’ll now publish our overall sales report on  Power BI Service and create a dashboard.

Save your reports on Power BI Desktop. Then, click on the home menu and select the “Publish” button.

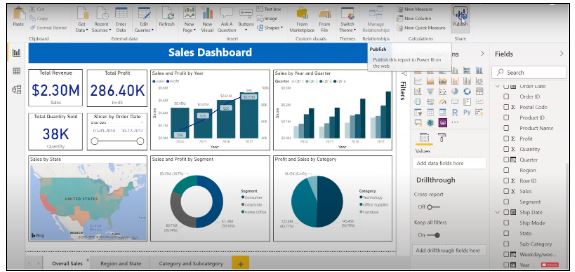

publishing-report

Fig: Publishing report on to Power BI Service

You can also create a new workspace or publish the report to an existing workspace in Power BI Service.

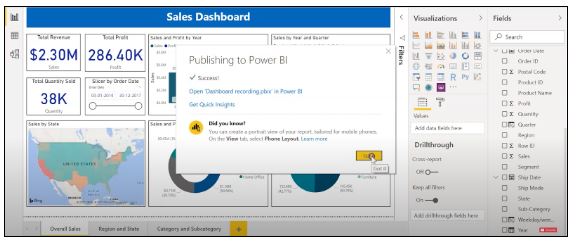

/publishing-powerbi

Fig; Publishing to Power BI successfully

Let us now explore the different Power BI Service features and build a dashboard.

Exploring the Features of Power BI Service

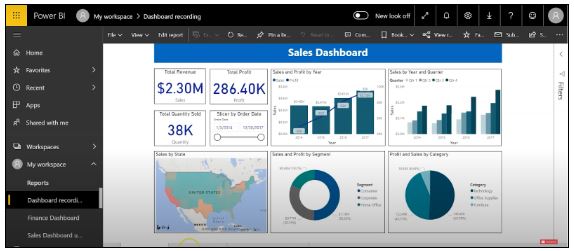

To access Power BI Service, log in to app.powerbi.com and give your Microsoft account credentials. Under “Workspaces,” you can view all of your published reports.

dashboard-on-bi-service

Fig: Power BI Dashboard on Power BI Service

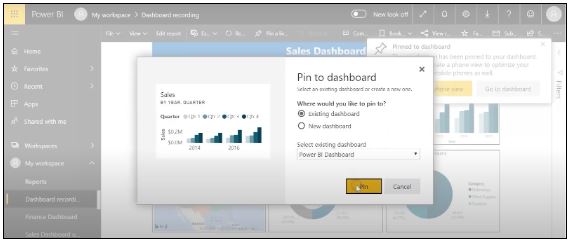

To create a Power BI dashboard, you need to pin each of the visualizations individually. The pin button appears on top once you click on a visualization. It will ask whether you want to pin it to an existing dashboard or create a new dashboard. Choose whichever is suitable.

pinning-tiles.

Fig: Pinning tiles to the Power BI Dashboard

If you go to your dashboard name and select it, you’ll find all the visualizations that were pinned from the reports. You can resize the tiles as you wish to make them fit better.

Fig: Power BI Dashboard using sales data

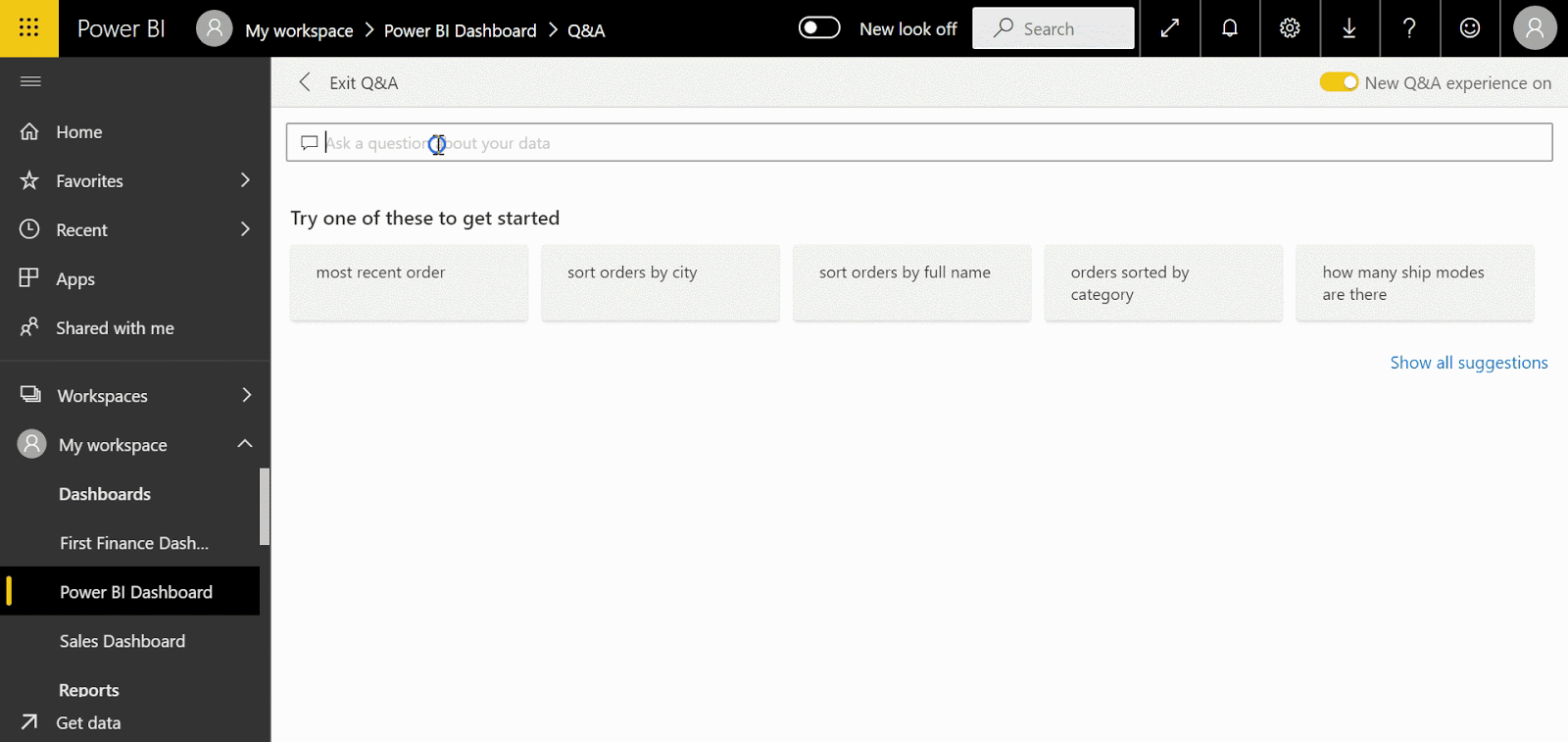

Power BI Service has a helpful feature that enables users to ask questions about their data and receive insights. Let’s see how Power BI can automatically provide insightful information about your data.

asking

Fig: Asking questions using Power BI Dashboard

Conclusion

Power BI is an exceptionally powerful business intelligence tool used to analyze and visualize data. We created this guide to introduce Power BI to anyone looking to learn more about this tool, as well as Power BI Desktop and its many features. We also covered Power BI dashboards, which included a step-by-step demo for creating a Power BI dashboard using Power BI Desktop and Power BI Service. Finally, we explored the various Power BI Service features and derived meaningful insights from our data.

If you have any additional questions or would like to learn more about Power BI, please leave a comment in the chat section.

Start your career as a Data Analyst by learning through 20+ industry-relevant Data Analytics projects. Enroll in Simplilearn’s Data Analyst Master’s Program to get started!
