A Brief Guide on S-curve in Project Management

S-curve in Project Management

An S-curve is a chart that shows how a project is moving over time. It could track the cumulative work done, money spent, or resources used. Usually, it starts slow, speeds up during the busy part of the project, and then slows down again as the project wraps up.

Managers use S-curves to assess whether the project is on track, identify delays, and estimate when it might finish. They are especially handy for larger projects because they help teams adjust resources and make decisions before small problems become big ones.

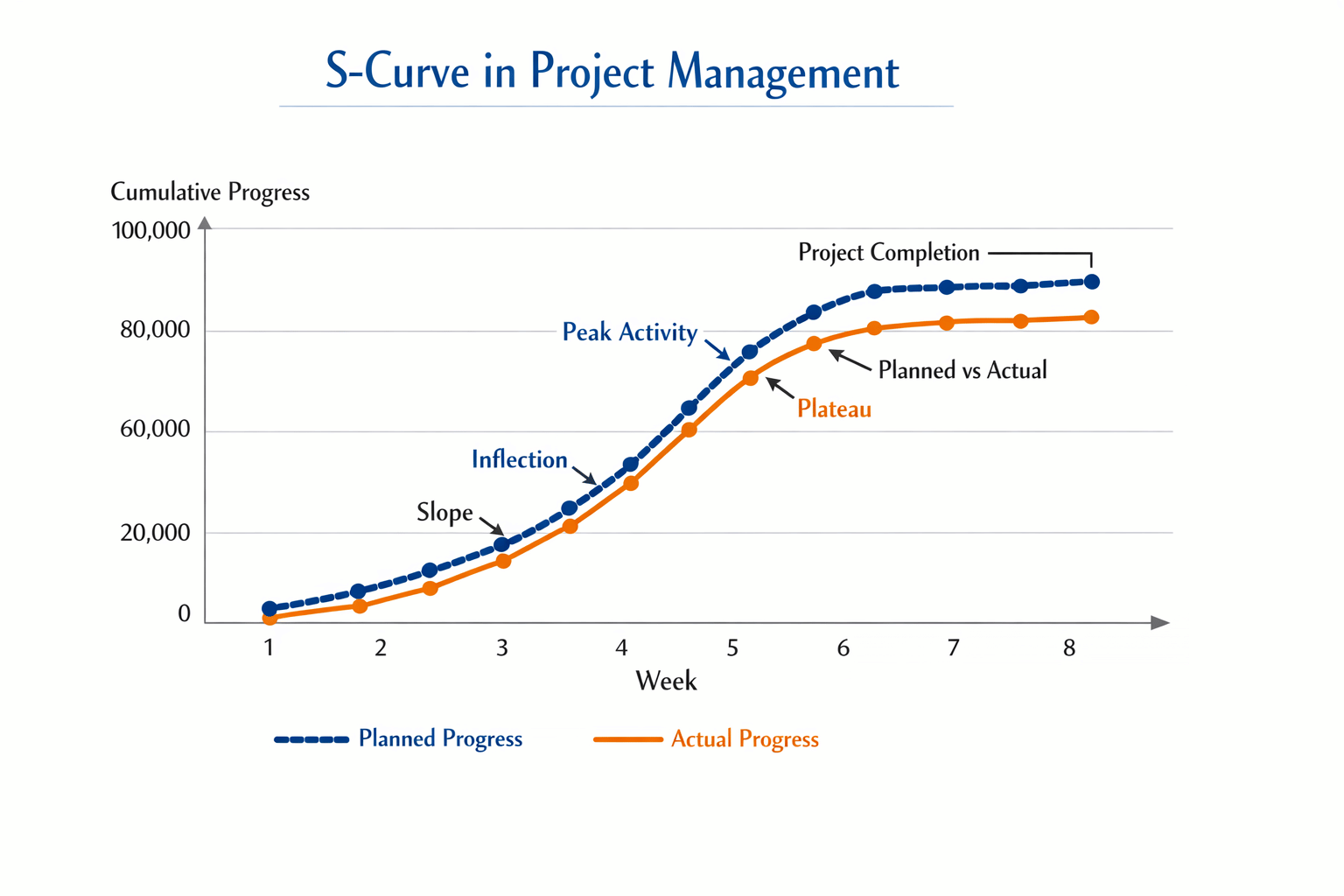

How to Read an S-curve?

Now that you know what is S-curve in project management, let’s see how you can interpret it to understand project progress and trends:

• Slope

The slope of an S-curve indicates how quickly a project is progressing. If the line goes up steeply, activities are happening quickly, like work being done or money being spent. If it’s flatter, progress is slower. Watching how the slope changes can help you see when the project speeds up or slows down over time.

• Inflection

Inflection points mark significant changes in the curve’s behavior, where the rate of progress shifts noticeably. Early inflection points generally indicate that the project has moved from initial setup into active execution.

Later inflection points often mark the transition from peak activity to the project's closing phase. These points indicate where the workload intensity changes and how the project phases are progressing.

• Plateau

A plateau occurs when the S-curve flattens out, indicating that little is changing. This can happen if key tasks are delayed, resources are limited, or the project depends on something else that isn’t ready. Plateaus show where progress has slowed down and help you understand how actual work compares to what was planned.

• Planned vs Actual

S-curve charts usually have two lines. One is the plan, showing what you expect to happen with work, time, or costs. The other shows what’s actually happening. Looking at both lines side by side makes it easy to see where the project is ahead, behind, or on track, and where you might need to make changes.

You can also interpret the differences between planned and actual lines as variances. When actual progress is ahead of or behind the planned curve, it indicates schedule variance, helping you see whether the project is on time or delayed. Similarly, if actual costs rise above or fall below the planned line, this reflects a cost variance, indicating overspending or savings.

Types of S-curves

So you have seen how to interpret an S‑curve, now let’s explore the different types of S‑curves used in project management and what each reveals about project progress.

• Baseline S‑curve

The baseline S-curve shows the project as planned, tracking work, costs, andeffort over time. It’s basically the reference for how the project is supposed to go. By comparing it with the actual progress, managers can quickly see what’s ahead, behind, or on track and decide if anything needs adjusting.

• Actual S‑curve

The actual S-curve tracks what’s happened so far, such as how much work has been done or how much money has been spent. Comparing it with the original plan makes it clear where the project is moving too fast or falling behind. Looking at the curve over time also gives a sense of how resources are being used at each step.

• Target S‑curve

A target S‑curve incorporates adjustments made after project initiation, such as revised timelines, updated resource allocations, or approved changes in scope. It allows project teams to monitor progress against the new expectations, making it easier to distinguish between performance issues and planned modifications.

• Cost/Value S‑curve

Cost and value S-curves track the money side of a project. Cost curves show how much has been spent, while value curves show what the project has delivered so far. Comparing these to the plan makes it easy to see whether spending is on track and whether the project is delivering results at the right pace. These curves also help monitor cash flow and overall project value.

• Man‑Hours/Labor S‑curve

Labor S‑curves track cumulative effort, such as man‑hours applied to project tasks. They help identify periods of overutilization or underutilization of personnel. When labor input rises without corresponding task completion, it indicates inefficiencies or rework that need attention to keep the project on track.

• Banana Curves (Early/Late)

Banana curves show a range between early and late forecasts rather than a single line. The resulting band visually shows the possible spread of outcomes. Managers use these curves to evaluate risk and uncertainty, as the gap between the upper and lower curves indicates where timing or performance could vary across scenarios.

• Percentage S-curve

Percentage S-curves show progress as a part of the total project. This makes it easy to compare different projects or tasks. They also give a quick view of what’s done and what’s falling behind, so managers know where to focus their attention.

Along with these types, it is useful to understand how S‑curves differ from other project charts. Unlike a Gantt chart, which focuses on task schedules and timelines, or a burndown chart, which tracks remaining work, an S‑curve shows cumulative progress over time, making it easier to see trends in cost, effort, or completion against the plan.

Baseline vs Actual: What to Do When You are Above or Below Plan?

If the project is ahead of plan, it means tasks are getting done faster than expected. You can use this extra time to move resources to other work, start dependent tasks early, or even finish the project sooner. It’s also a chance to save money or reduce overtime.

If the project is behind, it indicates the work isn’t progressing as planned. Look for the reason; maybe there aren’t enough people, there’s a bottleneck, or priorities have changed. Then decide what to do next, like adding staff, adjusting the schedule, or reshuffling tasks.

How to Create an S-curve?

By now, we have covered what an S-curve in project management is, how to interpret it, and its types. Now let’s see how you can create an S‑curve step by step:

• Define the Metric to Track

The first step in creating an S-curve is deciding what to track over time. You could follow total cost, work done, man-hours, or earned value. What you choose decides the kind of S-curve you’ll get and what it can tell you.

For example, tracking costs shows how the budget is doing, while tracking work done shows how the schedule is progressing.

• Set the Time Interval

Next, choose the time intervals for plotting your data. This could be daily, weekly, or monthly, depending on the project's duration and complexity. Consistent intervals are essential because irregular timing can distort the curve and make interpretation difficult.

A weekly interval works well for most medium‑sized projects, while large programs may use monthly intervals to simplify the chart.

• Collect Baseline Data

To make the planned S-curve, collect your project’s schedule and cost info. Usually, this comes from your baseline plan, where each task has a timeline and a cost estimate. Then, add these numbers up over time to create the baseline S-curve.

• Record Actual Progress Data

Once the project starts, keep track of actual progress at the same points you used for the baseline. Record the money spent, work done, or hours logged by the team. Make sure the data is accurate and current so the S-curve really shows what’s happening.

• Plot the Data on a Chart

With both baseline and actual data ready, use a charting tool such as Excel, Google Sheets, or a project management platform to plot the cumulative values over time. The horizontal axis represents time intervals, while the vertical axis represents the cumulative metric. Plot baseline and actual lines together to make the comparison straightforward.

• Review and Validate the Curve

Once the S-curve is ready, take a look to make sure it makes sense. Check that the points match your records and that the lines follow what’s actually happening in the project. Make sure the planned line aligns with your baseline, and the actual line shows real progress. If anything looks off, fix it.

PMP Certification Essential for Senior-Level RolesPMP Certification TrainingExplore Course

Worked Example: Cost S-Curve With 8-Week Sample and Insights

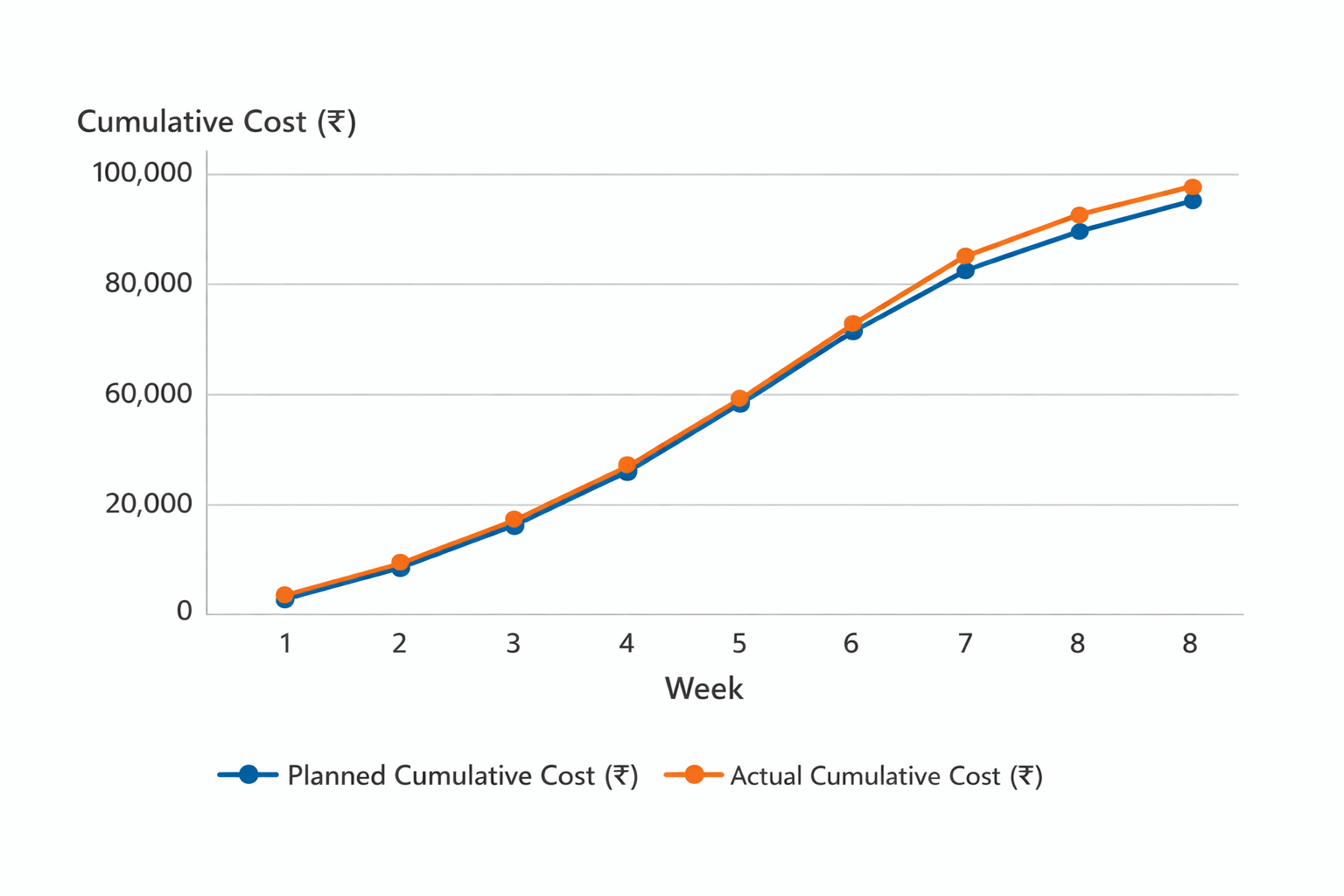

Now that you know how to create an S‑curve, let’s see how planned and actual costs appear in a real project over time. Consider an 8‑week project with the following cumulative costs:
