ER Diagram in DBMS: Components, Symbols, and Examples

TL;DR: An ER diagram acts as a visual map for the database system. It clearly displays entities, attributes, and relationships. Database designers use it to plan tables and keys before writing software code.

Every database design process begins with a clear plan. Businesses value this detailed planning method because poor data quality can be costly when systems are designed without a clear structure or ownership. An ER diagram makes planning easier in DBMS projects by visually mapping the database structure. This guide explains the ER model, core components, standard symbols, relationship types, cardinality rules, and practical ER diagram examples.

What Is an ER Diagram?

An ER diagram is a visual representation of entities, attributes, and relationships within a database system. ER stands for Entity Relationship, and it serves as a technical blueprint for design. It creates a graphical map that defines how different data objects interact in a specific environment.

Purpose of ER Diagrams

This diagram identifies the specific objects that a system must track and how they connect. Developers use an ER diagram in a DBMS to plan how an application stores and connects information. This tool helps teams map data requirements before database development.

What Is the ER Model?

The ER model provides the conceptual framework for a database. It describes the data strictly in terms of entities, attributes, and relationships. While the ER diagram provides the actual layered relational schema of the application, the ER model represents the underlying theoretical concepts of that architecture.

• Database designers rely on the ER model to analyze real-world objects
• They evaluate how those specific objects interact before building relational tables
• This structured thinking process ensures accurate and efficient database architecture

Advance Your Full Stack Career!AI-Powered Full Stack Developer ProgramEXPLORE COURSE

Components of an ER Diagram

Learners must understand the basic components of ER diagram structures to build one successfully. Each part serves a specific function in the database design.

• Entity: A real-world object or concept that stores data. Examples include a student, a course, a customer, an order, or an employee.
• Attribute: A specific property belonging to an entity. Examples include a student ID number, name, email, price, or order date.
• Relationship: A defined connection between two entities. A customer placing an order represents a clear relationship.
• Primary Key: An attribute that uniquely identifies each specific record. A student ID number acts as a primary key.
• Weak Entity: An entity that requires another entity for identification.
• Derived Attribute: An attribute calculated directly from another existing value. For example, calculating an age value from a date of birth.
• Multivalued Attribute: An attribute holding multiple values. A person holding multiple phone numbers demonstrates this concept.
• Composite Attribute: An attribute made of smaller, distinct parts. A full name splits into a first name and a last name.

ER Diagram Symbols and Notation

Different ER diagram symbols represent different database concepts, and notation styles occasionally vary across different software tools and textbooks. Many modern systems use Chen notation, UML-style notation, or Crow's foot notation. Using clear ER diagram symbols and notation prevents confusion during development.

Get the Coding Skills You Need to SucceedAI-Powered Full Stack Developer ProgramExplore Program

Types of Relationships in ER Diagrams

Entities connect in various ways, and it is important to understand the types of relationships to create an accurate ER diagram.

• One-to-One Relationship: One record in the first entity connects to one record in the second entity. One person holds one passport record.
• One-to-Many Relationship: One record in the first entity connects to multiple records in the second entity. One customer places multiple orders.
• Many-to-One Relationship: Multiple records in the first entity connect to a single record in the second entity. Many employees report to one specific department.
• Many-to-Many Relationship: Multiple records connect to multiple records across both entities. Students enroll in multiple courses, and courses hold multiple students.

We can resolve many-to-many relationships by introducing a junction table and can connect the student and course entities using a dedicated student-course table.

What Is Cardinality in ER Diagrams?

Cardinality specifies the exact number of instances of one entity that can be associated with another entity. Relationship type describes how the entities are connected. Cardinality also specifies how many individual records participate in that specific connection. Developers frequently use crow's-foot notation to represent this cardinality in their models visually.

Learn 45+ in-demand full-stack development skills and tools, including Frontend Development, Backend Development, Version Control and Collaboration, Database Management, and AI Assisted Development, with our AI-Powered Full Stack Developer Course.

How to Create an ER Diagram

We can build an accurate ER diagram and model by following a systematic approach.

• Identify the main purpose of the database system
• List all the primary entities involved in the project
• Add relevant attributes to each specific entity
• Choose appropriate primary keys for unique identification
• Identify the exact relationships between the entities
• Define the correct cardinality for every single relationship
• Resolve any many-to-many relationships using junction tables
• Review the entire diagram for missing or redundant entities
• Convert the final drawing into a relational schema for actual implementation

Learners can use dedicated ER diagram tools such as Lucidchart, Microsoft Visio, MySQL Workbench, or MySQL. Some designers explore AI-generated ER diagrams to draft initial concepts. Ensure that you manually review these AI outputs to verify entities, relationships, keys, and cardinality.

Go From User to AI BuilderShip AI Apps, Agents, & WorkflowsExplore Now

ER Diagram Examples

An ER diagram models the static database structure, and advanced users frequently explore the enhanced ER model (EER). Reviewing practical ER diagram examples like the ones below helps connect abstract symbols to actual database problems.

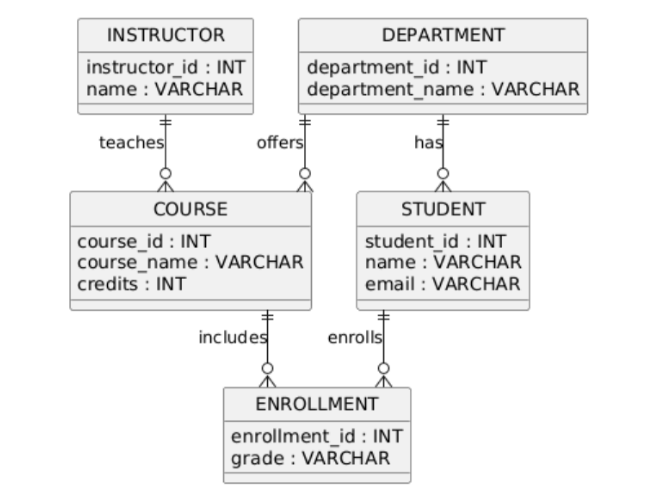

Student Management System

An ER diagram for a student management system is a popular beginner project. This database tracks academic interactions across a school network.

Core Entities:

• Student: Holds details like an identification number and an email address.
• Course: Stores credit values and syllabus details.
• Instructor: Represents the teachers managing specific classes.
• Department: Acts as the primary organizational structure.
• Enrollment: Serves as a junction table bridging students and courses.

Key Relationships:

• A student connects directly to an enrollment record to register for classes.
• An instructor teaches specific courses through a one-to-many relationship.
• A department guides the academic workflow by overseeing multiple students and offering a range of courses.

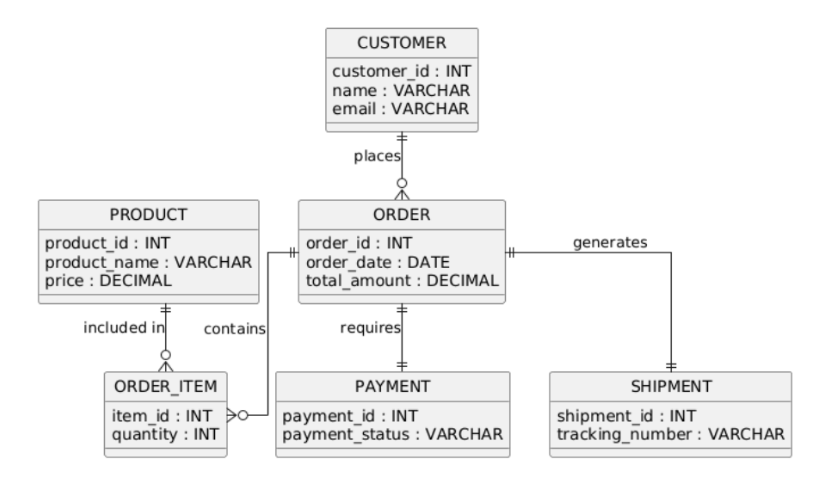

E-commerce System

Online stores require robust database structures to handle thousands of daily transactions effectively.

Core Entities:

• Customer: Acts as the starting point for this specific system diagram.
• Order: Records the transaction details and total purchase amounts.
• Product: Maintains stock levels and pricing information.
• Order Item: Manages the exact quantities of items purchased.
• Payment: Tracks the financial processing details.
• Shipment: Tracks the physical delivery status.

Key Relationships:

• Customers place orders through a one-to-many relationship.
• Every single order contains multiple individual products.
• The order item table resolves the connection between orders and products.
• The order links directly to individual payment and shipment records.

Key Takeaways

• An ER diagram provides a clear visual representation of database entities, attributes, and relationships
• The ER model serves as the conceptual framework defining the database structure
• Standard components include specific entities, attributes, keys, relationships, and precise cardinality rules
• Cardinality specifies the exact number of records that participate in a specific database relationship

Software engineering remains one of the most versatile and in-demand careers in tech. Explore this Software Engineer roadmap to understand the skills, tools, salary potential, and career progression from entry-level developer to senior engineering roles.

FAQs

1. What is the basic ER diagram?

A basic ER diagram is a visual map showing how database objects connect, using standard shapes such as rectangles, ovals, and diamonds, to support clear planning.

2. How do you create an ER diagram?

Identify the main entities and attributes, select primary keys, establish logical relationships, and draw the structure using standard symbols to map out your database system.

3. What is the difference between the ER model and the ER diagram?

The ER model provides the conceptual framework for organizing data. An ER diagram is the visual representation of the specific model.

4. Why do we draw an ER diagram?

Draw these diagrams to visualize database structures before building tables. This process helps teams communicate and find potential design errors early in the development lifecycle.
