Value Stream Mapping Examples: Real-World Use Cases

What is Value Stream Mapping and How Does It Work?

Value stream mapping is a lean methodology that provides a visual representation of all the activities involved in delivering a product or service. Instead of focusing on individual tasks, it looks at the entire workflow from the initial request to the final delivery. The map includes process steps, information flows, waiting periods, handoffs, and other activities that affect how work moves through a system.

The process typically begins by documenting the current state of a workflow. Teams map out every step, measure metrics such as cycle time and wait time, and identify delays or inefficiencies along the way. They develop a future-state map to improve process efficiency using these findings. The comparison allows the teams to identify areas for improvement and develop an implementation plan.

Move from understanding quality management concepts to applying them in real-world scenarios. Simplilearn’s Lean Six Sigma Green Belt Certification Training helps you develop practical expertise in DMAIC, process improvement, data analysis, and root cause analysis through hands-on projects.

Types of Value Stream Mapping Examples

• Value Stream Mapping Example in Manufacturing

Toyota is closely associated with Lean production principles. Its Just-in-Time system focuses on producing and moving only what is needed, when it is needed, and in the required quantity.

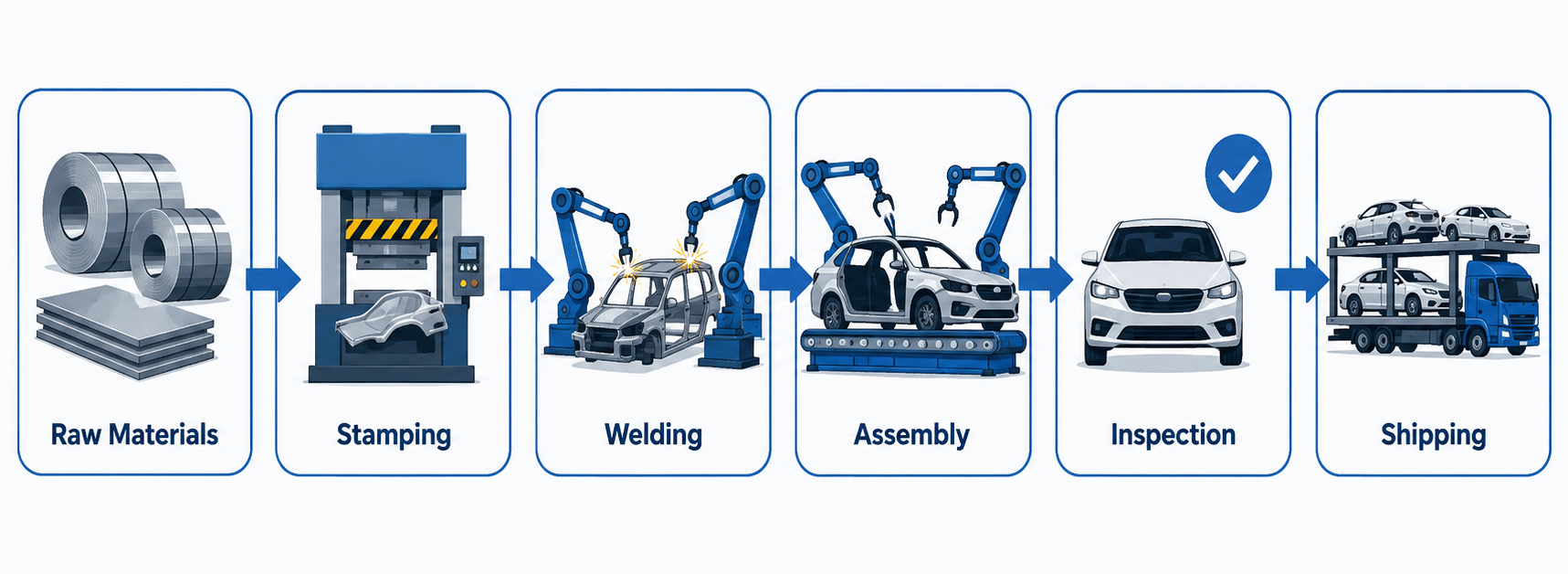

An automotive manufacturing map may follow this process:

Teams can record cycle time, changeover time, equipment uptime, inventory, and waiting time at each stage.

A current-state map can show that a portion of the parts used in the process spend more time between welding and assembly than in the process itself. The future state may include introducing smaller batches, implementing pull-based replenishment, and improving production scheduling to reduce inventory and enhance flow.

• Value Stream Mapping Example in Healthcare

A healthcare value stream map follows the patient journey rather than the work of a single department. Virginia Mason uses value stream maps to examine processes from the patient’s perspective and identify waiting, unnecessary movement, and repeated paperwork.

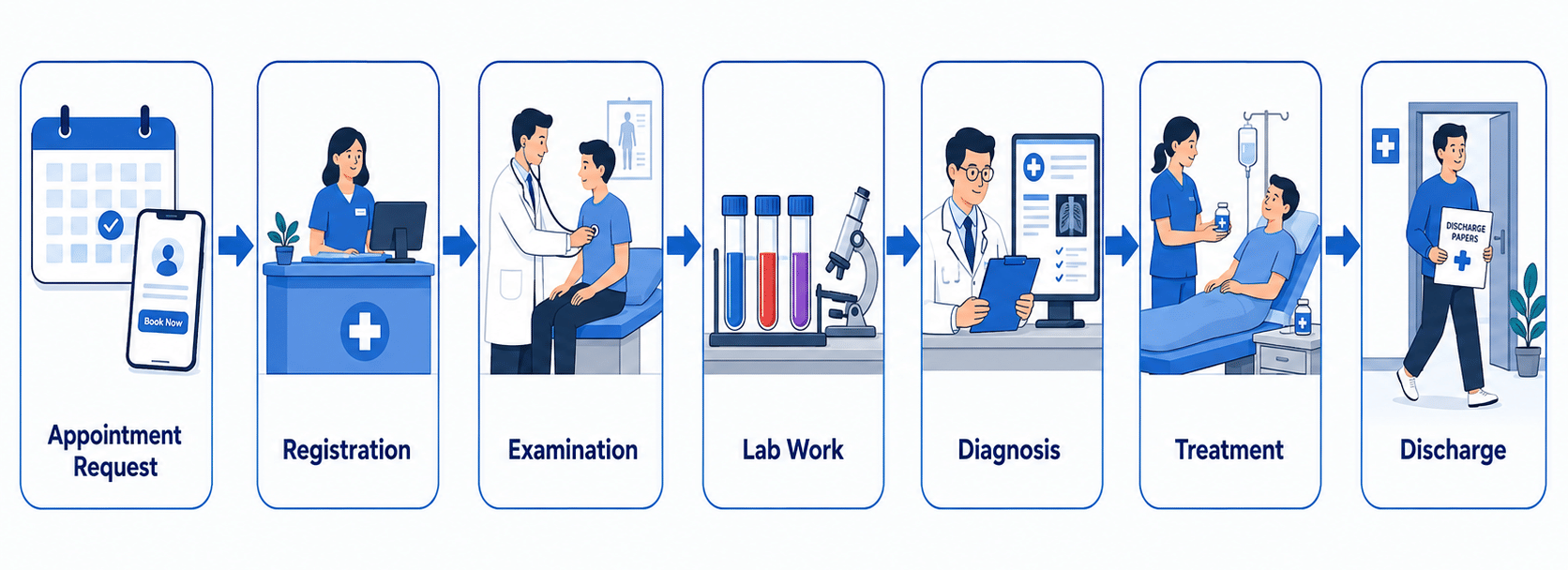

A patient-flow map may follow this process:

Patient wait time, clinical time, handoffs, department travel, and repeated data entry can be measured by teams.

There may be a delay between tests and consultation, as depicted on the map. A future-state design might help coordinate appointments, eliminate duplicate forms, and define handoff responsibilities.

• Value Stream Mapping Example in Software Delivery

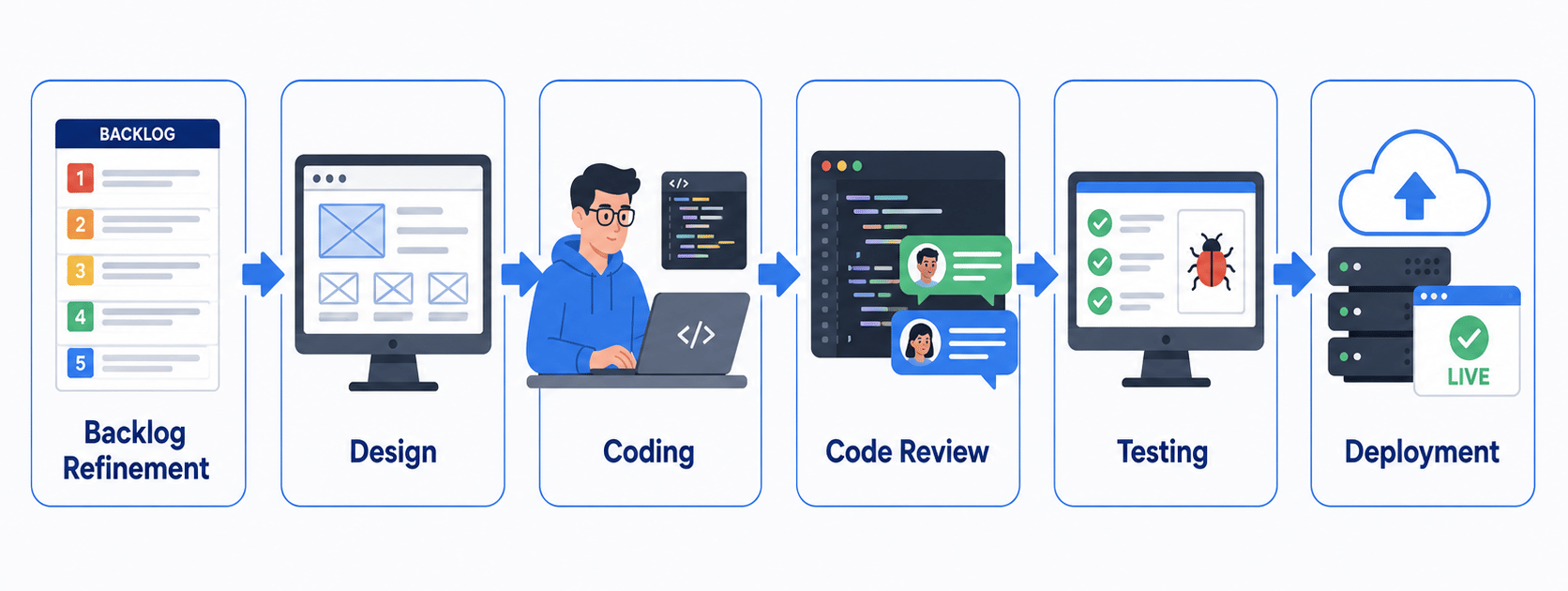

In software development, a value stream map may track a feature from idea to production:

Key indicators are the active development time, queue time, review time, deployment lead time, rework, and defects. Value stream maps for software can reveal delays, hand-offs, loopbacks, and wait times between process steps.

The map might indicate that coding requires 2 days, reviewing, testing, and approval require 8 days overall. The total delivery time may be decreased with smaller work items, automated testing, review ownership, and fewer manual approvals.

• Value Stream Mapping Example in Supply Chain Management

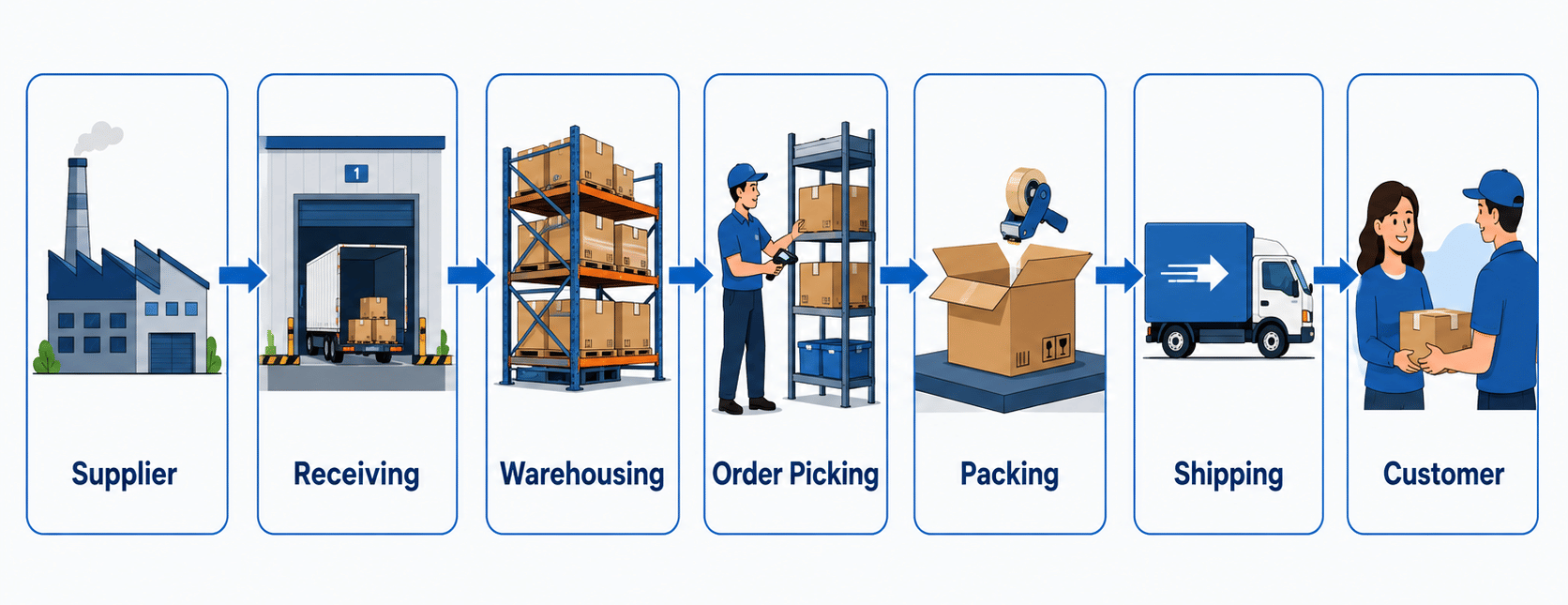

A supply chain value stream map may follow this process:

Teams can track inventory levels, order fulfillment time, picking accuracy, handling time, and shipping delays.

A current-state map may uncover excess movement between storage areas or orders waiting for shipping documentation. The future state could reorganize storage, introduce digital information flows, and reduce unnecessary handling.

Current-State and Future-State Value Stream Mapping Examples

A current-state map shows what is happening now, including inefficient steps. A future-state map shows how work should flow after improvements are introduced.

Consider a simple software delivery VSM example:

The future-state map is not simply a cleaner version of the current map. It should describe an achievable target that reduces the most important barriers to flow.

How to Create a Value Stream Map

A practical value stream mapping process includes five steps:

1. Select one product, service, or workflow with a clear beginning and end.
2. Walk through the actual process and speak with the people doing the work.
3. Record process time, waiting time, queues, handoffs, information flows, and rework.
4. Draw the current-state map and identify the largest sources of delay or waste.
5. Create the future-state map and assign actions, owners, and improvement measures.

The goal is not to document every minor detail. It is to understand the end-to-end flow well enough to identify changes that improve customer value.

Prepare to lead complex process improvement initiatives with Simplilearn’s Lean Six Sigma Black Belt Certification Training. Strengthen your expertise in advanced statistical analysis, Lean principles, project management, and strategic problem-solving.

Conclusion

Value stream mapping turns an end-to-end workflow into a measurable view of process time, waiting, information flow, and waste. By comparing the current state with a more efficient future state, teams can prioritize improvements that reduce delays and create a smoother flow of value.

Professionals seeking to deepen their expertise in process improvement can explore Simplilearn’s Lean Six Sigma Expert Program. The program covers Lean and Six Sigma methodologies, the DMAIC framework, statistical analysis with Minitab, and real-world projects focused on quality management and process optimization.

FAQs

1. What is value stream mapping with an example?

Value stream mapping is a Lean technique used to visualize how materials, information, and work move through an end-to-end process. For example, a software team may map a feature from backlog refinement to deployment to identify delays in code review, testing, or approvals.

2. What are the four steps of value stream mapping?

The four common steps are selecting the value stream, creating a current-state map, designing a future-state map, and developing an implementation plan. These steps help teams understand the existing workflow, identify waste, and plan improvements.

3. What are the seven wastes of value stream mapping?

The seven classic Lean wastes are transportation, inventory, motion, waiting, overproduction, overprocessing, and defects. Value stream maps help teams locate these wastes across a workflow and understand how they affect lead time, cost, and process efficiency.

4. What are the five steps of walking a value stream?

The five practical steps are selecting the workflow, observing the process where the work happens, recording process and waiting times, identifying waste and bottlenecks, and creating a future-state improvement plan.

5. Which industries use value stream mapping?

Value stream mapping is used in manufacturing, healthcare, software development, logistics, supply chain management, financial services, customer support, and other service environments. It is especially useful in workflows that involve multiple stages, queues, handoffs, or approvals.
