What Is a Multi-Agent System? A Practical Guide

What is a Multi-Agent System?

A multi-agent system, or MAS, is a network of independent agents working in the same environment. Each agent makes its own decisions and can communicate with others to achieve individual goals or collaborate on larger tasks. Unlike traditional systems that rely on a central controller, MAS spreads decision-making across all agents.

This setup makes the system flexible and easy to scale. It works well for complex problems in which agents must coordinate, cooperate, or even compete to find optimal solutions.

According to Dimension Market Research, the global MAS market could reach approximately USD 184.8 billion by 2034, underscoring the industry's reliance on it for smarter, more reliable automation.

Why Use Multiple Agents Instead of One “Smart” Agent?

Now that you have an idea of what a multi-agent system is, here is why you should use it instead of relying on a single “smart” agent.

• Parallel Problem Solving

In systems such as autonomous logistics or large-scale simulations, multiple tasks can occur concurrently. One agent might predict demand, another could check inventory, and a third could handle delivery scheduling.

Having multiple agents work together is faster than having a single agent handle everything individually.

• Task Specialization

Agents can develop focused expertise. For example, in a customer support system, one agent might handle speech-to-text transcription, another manage sentiment analysis, and a third generate responses.

Each specialized agent outperforms a single model that tries to do all tasks at once.

• Flexibility and Scalability

Adding new agents or machinery for additional tasks in a smart factory can be done without redesigning the entire system.

Enterprises can scale functions such as fraud detection and user segmentation by deploying targeted agents.

Core Components of MAS

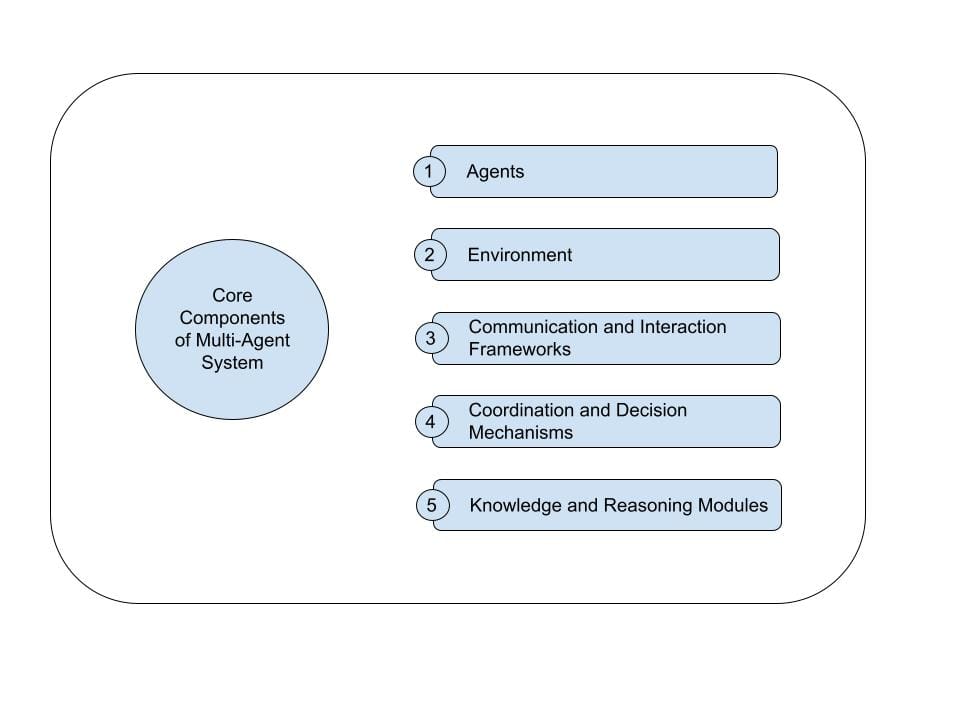

Image Representation: Core Components of a MAS

Now, let’s look at the core components of a multi‑agent system, so you understand what makes these systems work together effectively:

1. Agents

Agents are the ones making decisions in a system. Each can operate independently, sense its surroundings, and take actions to achieve its goals.

In real life, an agent could be a software bot, a robot on a factory floor, a sensor in a smart network, or any device that can act autonomously and interact with others.

2. Environment

The environment is the space where agents operate and interact. It can be a virtual setting, such as a simulated network or digital marketplace, or a physical environment, such as a warehouse or traffic system.

The environment provides the context for agents’ actions, supplies resources, sets constraints, and affects how information flows between agents.

3. Communication and Interaction Frameworks

Agents need to share information and collaborate, which means they must communicate with one another. They use protocols and messaging systems to do this.

For example, some agents follow standards like FIPA‑ACL, while others use simple API-based methods. These let agents send messages, request actions, or share updates in a way that both sides can understand.

4. Coordination and Decision Mechanisms

Coordination is how agents work together without getting in each other’s way. This can happen in different ways. Some agents get assigned specific tasks, some agree on a common plan, and sometimes they negotiate to solve conflicts.

When done right, coordination ensures that all agents help the system run smoothly rather than causing problems for one another.

5. Knowledge and Reasoning Modules

To make smart decisions, agents typically maintain knowledge and rules to guide their actions. These could be simple rules, learned patterns, or logical systems that guide their actions and help them handle change.

In more advanced setups, agents can share information to make better group decisions.

Learn 27+ in-demand generative AI skills and tools, including Prompt Engineering, Agentic Frameworks, AI Agents, LangChain for Workflow Design, and RAG, with our Applied Generative AI Specialization.

How Multi-Agent Systems Actually Work?

A multi-agent system works by having agents sense their environment, make decisions, act, and collaborate toward a common goal. Here’s how it usually happens, step by step:

• Perception and Data Gathering

Agents start by observing their environment to determine what’s happening. This could be sensor data for a robot, a user’s question for a software agent, or task details in an automated workflow. How well they process this initial information affects the decisions they make next.

• Reasoning and Decision‑Making

Once an agent gets the data, it decides what to do next. Modern systems often rely on models or logic tools to interpret the situation, predict outcomes, and determine the steps to achieve a goal.

In AI-powered multi-agent systems, machine learning can help agents identify patterns and infer user intent, enabling them to select the action that best serves users.

• Action Execution

With a plan in place, agents execute actions in the environment. In software, this might mean querying a database, sending a request, or triggering a task.

In physical systems, an agent may move a robot arm, adjust a thermostat, or steer a vehicle. The actions change the environment's state or advance the overall goal.

• Interaction and Coordination

Agents in a multi-agent system don’t work alone. They share information, figure out who does what, and adjust their actions so they don’t get in each other’s way. They can communicate directly, use shared memory, or simply react to environmental changes.

By working together, they avoid duplicate work, balance the load, and handle changes more quickly.

• Orchestration and Workflow Management

In more advanced systems, an orchestration layer manages agent workflows. Orchestration ensures agents are triggered in the right order, that data flows between them, and that individual outputs feed into the next steps of a larger plan.

Instead of random interactions, the orchestrator maintains structure and goal orientation, much like a project manager assigns tasks and tracks progress toward a deadline.

What Are the Most Common MAS Architectures?

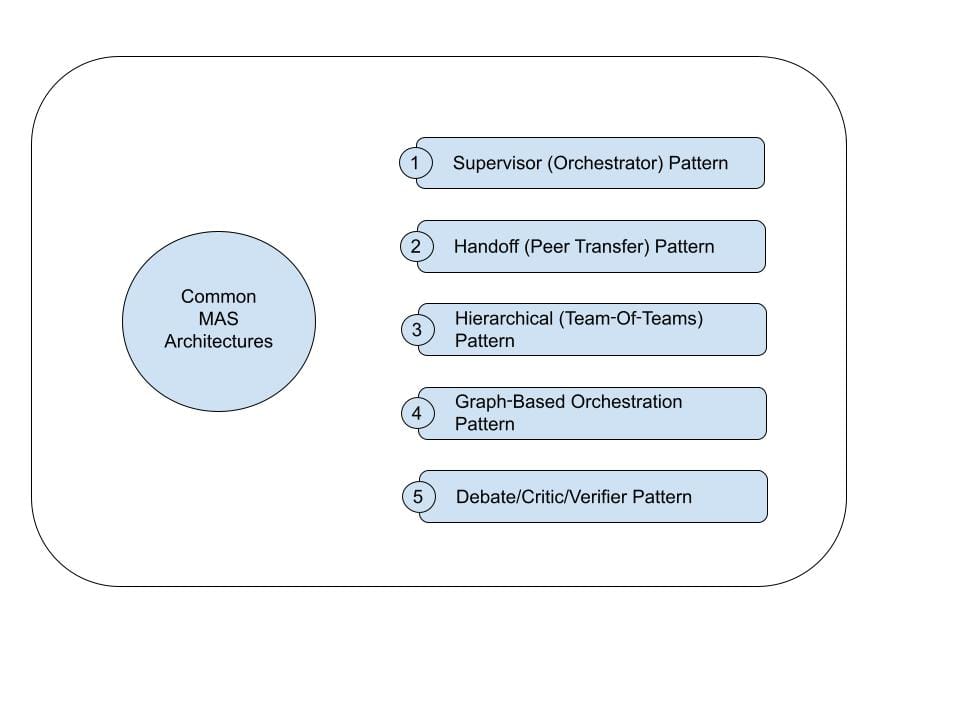

Image Representation: MAS Architecture

Apart from how a multi‑agent system works operationally, there are several architectural or orchestration patterns that engineers and researchers rely on to structure agent cooperation effectively:

1. Supervisor (Orchestrator) Pattern

In the Supervisor (or Orchestrator) pattern, a central agent serves as the manager. This agent breaks a task into subtasks, assigns them to specialist agents, monitors progress, and aggregates results. It functions much like a project manager, ensuring work flows smoothly and dependencies are honored.

Subordinate agents focus narrowly on their roles while the supervisor handles sequencing and error recovery. This pattern simplifies coordination and is among the most common starting points for MAS design, owing to its clarity and control.

2. Handoff (Peer Transfer) Pattern

The Handoff pattern emphasizes dynamic control transitions between agents. Rather than having a single coordinator, agents transfer task ownership to one another based on context or capability.

For example, after an agent finishes extracting structured data from text, it may “hand off” its output to another agent optimized for summarization.

This approach works well when a task pipeline is known, but rigid central coordination is unnecessary or inefficient, forming a structured chain of specialized agents that pass work along.

3. Hierarchical (Team‑Of‑Teams) Pattern

In the Hierarchical pattern, agents are organized in layers, much like teams within teams. Higher-level agents supervise groups of lower-level ones, and some of those lower-level agents might manage even smaller groups.

This setup makes it easier to handle bigger systems. The top-level agents focus on overall strategy, the middle-level agents oversee specialized groups, and the bottom-level agents perform specific tasks.

Using layers like this helps manage complexity and keeps everything organized, which is why it’s common in both research and real-world multi-agent systems.

4. Graph‑Based Orchestration Pattern

Some advanced multi-agent systems use graphs to show how agents and tasks are connected. Instead of following a strict chain or tree, agents link to one another in a network, where connections indicate how information flows or how tasks depend on one another.

Researchers are exploring ways to make these graphs adaptive in real time, enabling agents to collaborate and share information based on the problem at hand.

Using graphs this way makes the system more flexible and better at handling complex workflows where tasks don’t always follow a straight line.

5. Debate/Critic/Verifier Pattern

The Debate or Critic/Verifier pattern adds a checking step to a multi-agent system. One agent proposes an answer or plan, and another serves as a critic, verifying that it is sound and in accordance with the rules.

The critic provides feedback, and the first agent can refine its response. This back-and-forth helps make results more reliable, especially for tasks where accuracy is critical, such as fact-checking, summarizing sensitive information, or making decisions that must be safe.

How Agents Coordinate and Communicate?

Having covered the components, workflows, and architectures, let’s now see how agents coordinate and communicate:

Step 1: Configure Communication Channels

Agents start by ensuring they can communicate effectively. This means deciding how to send messages, what format to use, and how to handle them so communication works smoothly.

Step 2: Discover and Register Peers

Each agent registers its abilities, roles, and current status in a shared directory or registry. Agents check this registry to find the right peers to work with, enabling targeted, efficient interactions.

Step 3: Share State and Capabilities

Agents send out key information about their current state, available resources, and goals. Sharing this lets other agents make decisions without needing a central controller.

Step 4: Negotiate Tasks and Roles

Agents divide responsibilities using negotiation strategies like bidding, priority rules, or constraint satisfaction. This step ensures work is distributed fairly and each agent knows its tasks.

Step 5: Apply Multi-Agent Design Patterns

Agents follow common design patterns, such as having subagents handle subtasks, passing tasks between agents, or using routers to manage the flow of actions. These patterns help reduce conflicts and improve overall coordination.

Step 6: Establish a Shared Execution Plan

Agents create a coordinated plan that sets the order, dependencies, and timing of actions. Having a shared plan helps avoid conflicts and keeps all agents aligned toward the same goal.

Step 7: Execute Actions With Continuous Feedback

Agents perform their duties while maintaining ongoing communication about their current progress, operational status, and any changes to their working environment. The feedback system enables them to make real-time adjustments, which help them maintain coordination with the established work schedule.

Step 8: Detect and Resolve Conflicts

Agents monitor for task conflicts, resource overlaps, or actions that interfere with one another. They resolve these issues using protocols such as arbitration, replanning, or escalation to maintain system consistency.

Step 9: Synchronize Completion and Update System State

Once tasks are done, agents confirm completion and update the shared system state. The process establishes a shared understanding of the environment among all parties, enabling them to prepare for upcoming tasks.

Multi-Agent Systems with LLMs: What’s Different Now?

With LLMs, multi-agent systems are becoming more flexible and adaptive. Let’s see what is different now in how these systems operate and coordinate:

• Enhanced Collaborative Reasoning

In systems that use large language models, agents collaborate to figure things out. Instead of following strict rules, they share information and adjust their actions based on what’s happening. This makes problem-solving more flexible and responsive than in traditional multi-agent systems.

• Dynamic Context Handling

One major difference between LLM-powered agents and other agents is how they track context. They remember what happened in a task and what’s happening in the situation while they work. This helps them handle multi-step tasks more smoothly, but it also means agents need to keep their information in sync with one another.

• Specialized Agent Roles

In modern LLM systems, different agents often handle different jobs. Some plan, some check work, and some coordinate between others. Breaking tasks into smaller parts lets each agent focus on one thing while still working toward the bigger goal.

• Flexible Coordination

These systems can also change how agents collaborate based on requirements. They don’t stick to fixed patterns—agents can connect and share information differently as the situation changes. This makes the system more flexible and easier to scale.

• Keeping Things Reliable

LLM agents operate on probabilities, so they need to communicate clearly. If they don’t, they might make mistakes or act against each other. Keeping everyone on the same page makes things run more smoothly.

• New Scalability Considerations

Introducing LLM agents adds computational and communication challenges.  Running multiple large models concurrently requires careful planning to avoid overloading the system, and messaging between them must be efficient to avoid slowdowns.

Keeping everything running smoothly while agents collaborate is key to ensuring these systems perform effectively in real-world scenarios.

Real-World Use Cases for Multi-Agent Systems

Clearly, LLMs are enhancing the flexibility and adaptability of multi-agent systems. Now let's look at some real-world use cases where they are making a difference.

1. Autonomous Transportation and Traffic

Multi-agent systems can coordinate vehicles, traffic signals, and routing decisions in real time, helping traffic flow more smoothly without a central controller. Each vehicle or intersection acts as an independent agent, sharing information to reduce congestion and improve overall travel efficiency.

2. Smart Energy and Grid Management

In energy networks, agents monitor generators, storage units, and power consumption. The system establishes connections between agents, enabling them to adjust power generation and distribution in response to demand and available resources. This process maintains system equilibrium while reducing energy waste.

3. Industrial Robotics and Warehouse Automation

In factories and warehouses, groups of robots work together to divide tasks, plan their routes, and avoid collisions. By coordinating this way, they keep things moving smoothly and can handle changes more easily, even in busy, complex work areas.

4. Supply Chain and Logistics Optimization

The supply chain system requires agents who represent all three components: suppliers, warehouses, and delivery vehicles. The system uses real-time data sharing to automatically adjust shipment schedules and resource allocation, enabling it to handle operational delays and material shortages while improving operational efficiency.

5. Healthcare Coordination and Resource Management

In hospitals, multi-agent systems help keep things running smoothly. They can determine where patients should go, ensure equipment is available, and coordinate the care team. By sharing information, agents help match capacity to demand and reduce wait times, even during surges.

6. Financial Markets and Automated Trading

In finance, agents monitor market data, identify patterns, and make trading decisions rapidly. Distributed analysis enables firms to respond to changing market conditions more effectively than centralized systems, improving speed and accuracy.

How to Evaluate Whether You Need MAS?

Before evaluating a multi-agent system, it is important to determine whether your problem requires one. Assess the complexity of your tasks and whether they can be decomposed into smaller, independent components.

MAS works best when multiple tasks can be performed concurrently and when scaling is likely in the future. Also, consider the additional coordination and communication work among agents, as this can affect performance if the system is not sufficiently complex.

A good approach is to start with a simple prototype using a single agent. This helps you see if task specialization or parallel execution is needed. If the prototype shows bottlenecks or inefficiencies, moving to a multi-agent setup makes sense. Evaluating these points ensures you adopt MAS only when it truly adds value.

Reliability and Safety: How to Prevent Multi-Agent Failure Modes

In addition to evaluating a multi-agent system, you must ensure it remains reliable and safe in real-world conditions. Here is how you can do it effectively:

• Redundancy and Fault Tolerance

Building redundancy ensures that individual agent failures do not compromise the entire system. Parallel components or backup agents can automatically take over tasks, maintaining continuous operation even when some agents malfunction.

• Monitoring and Anomaly Detection

Continuous monitoring of agent behavior and communication patterns enables early detection of anomalies or errors. Real-time logs, metrics, and alerts enable quick action, preventing minor problems from escalating into complete system breakdowns.

• Hierarchical Oversight and Supervision

Supervisory agents can oversee other agents' actions, providing real-time verification and intervention. This oversight helps prevent unsafe decisions and maintains system stability under complex conditions.

• Circuit Breakers and Fallback Paths

Circuit breakers help prevent a faulty agent from causing problems and route its tasks to other agents or to safe modes. That way, the system continues to run even if some components encounter errors.

• Fault Modeling and Testing

Testing agent failures and stress conditions before actual testing helps identify system vulnerabilities and their likely failure paths. Fault modeling and rigorous testing allow the system to be fine-tuned for resilience before deployment.

• Consensus and Graceful Degradation

Consensus mechanisms and designs that support graceful degradation allow the MAS to maintain core functions even under partial failure. The system can operate in a reduced capacity without compromising safety or consistency.

Learn generative AI with hands-on training in agentic AI, LLMs, and tools like OpenAI with our Applied Generative AI Specialization. Learn from industry experts to drive innovation, automation, and business growth, with real-world AI applications.

Popular Frameworks and How They Map to MAS Patterns

There are a few popular frameworks for building multi-agent systems, and each works slightly differently depending on how the agents interact. Let’s take a look at how these approaches are used in real-world setups.

1. JADE (Java Agent Development Framework)

JADE is a mature agent framework that implements the FIPA standards for interoperable agent communication and coordination. It handles agent lifecycle, message passing, and container management, making it well-suited for supervisor/orchestrator roles and hierarchical patterns where structured communication and standard protocols are important.

2. SPADE (Smart Python Agent Development Environment)

SPADE is a Python framework that simplifies the development of multi-agent systems. It enables agents to communicate and collaborate without a central controller. You can use it for peer-to-peer communication or graph-based setups, and it handles messaging and interactions.

3. ROS (Robot Operating System)

ROS is widely used in robotics because it enables different components of a robot, or even different robots, to communicate with each other. It uses a publish-subscribe system and task-handling nodes to organize data and control signals. This setup is especially handy when multiple robots need to share sensor information or coordinate actions in real time.

4. AutoGen and CrewAI

New frameworks such as AutoGen and CrewAI help multiple agents collaborate more effectively. AutoGen focuses on organizing how agents interact and share reasoning, while CrewAI defines roles to distribute tasks across a team. Both make it easier for agents to break down tasks, communicate with each other, and coordinate steps when handling complex jobs.

5. LangChain and LangGraph

LangChain and LangGraph are platforms that simplify linking agents and managing their activities. They can also integrate with other tools or track information. These platforms are especially useful when agents need to share context, work together on tasks, or follow workflows that can change on the go.

6. Simulation and Modeling Frameworks

Tools like MASON and GAMA are used to run simulations and test how multiple agents interact. They’re not really for running things in real life, but they’re great for seeing how agents coordinate or negotiate in big, complex setups.

Did You Know that the Generative AI Market is Booming? According to Fortune Business Insights, the generative AI market is projected to grow from USD 161 billion in 2026 to USD 1,260.15 billion by 2034, exhibiting a CAGR of 29.30% during the forecast period.

How to Implement a MAS?

As you have already seen how to evaluate whether a multi‑agent system is needed, here is a step-by-step process to implement MAS in a clear and structured way:

• Step 1: Define Goals and Requirements

Start by figuring out what the system needs to do. Decide on the main goals, what each agent should handle, and what counts as success. Having clear goals ensures all agents work toward the same outcome.

• Step 2: Design Agent Roles and Capabilities

Figure out what each agent should do and what it’s responsible for. Decide how each one will make decisions, what information it uses, and what actions it takes so they all work together without getting in each other’s way.

• Step 3: Select Framework and Architecture

Pick a framework or platform that works for what you’re trying to do. Think about whether you need it to handle things in real time, work with multiple agents, or deal with tricky tasks.

• Step 4: Choose the Right MAS Architecture

Evaluate the structure of agents in AI based on task complexity, parallelism requirements, fault tolerance, and expected scale. Picking the right architecture, like hierarchical, peer-to-peer, supervisor, or graph-based, ensures efficient coordination and reliability.

• Step 5: Set Up Communication and Coordination

Decide how the agents will communicate and collaborate. Figure out what kind of messages they’ll send, how those messages travel, and how they share information or divide tasks.

• Step 6: Develop and Integrate Components

Implement the agent’s logic and connect any tools or data it will use. Test each part independently so that changing one agent doesn’t break the others.

• Step 7: Test, Simulate, and Refine

Run simulations to observe how the agents behave and whether they achieve your objectives. Watch for unusual situations, tweak how agents collaborate, and adjust their behavior if something isn’t working as expected.

Key Takeaways

• Multi-agent systems enable multiple agents to collaborate, making complex tasks easier to handle
• Agents coordinate by observing the environment, making decisions, and interacting with one another to align their actions with the system’s goals
• Using the right frameworks simplifies communication and task management while remaining flexible
• Careful planning, clear coordination, and thorough testing help prevent errors and keep the system running smoothly

Additional Resources

• Types of Generative AI Models
• Artificial Intelligence Tutorial for Beginners
• How to Become an AI Engineer: Skills, Roles, and Career Guide
• Top AI Jobs 2026: Expert Guide to Build Your Career
• What is Agentic AI?
• Future of AI
• AI in Decision Making
• Best AI Agents

FAQs

1. Do we actually need Multi-Agent AI Systems?

You need multi-agent AI Systems when tasks are complex, interdependent, or require parallel processing. Using AI agents and multi-agent systems allows distributed work without overloading a single agent.

2. What’s the difference between multi-agent systems and agentic AI?

Agentic AI operates as a single intelligent agent, while a multi-agent system coordinates multiple agents to achieve goals more efficiently.

3. When is a multi-agent setup better than a single-agent system?

Multi-agent systems are recommended when tasks can be specialized or executed in parallel. As a result, greater speed, flexibility, and resilience are available than with single-agent systems.

4. What are the main MAS architectures?

Common architectures include supervisor, hierarchical, handoff, and graph-based designs, which define the structure of agents in AI for collaboration and coordination.

5. What are common failure modes in MAS, and how do you prevent them?

Failures often arise from miscommunication, conflicts, or single points of failure. Using monitoring, redundancy, and fallback mechanisms ensures multi-agent AI remains reliable.
