The Best Guide to Confusion Matrix

In machine learning, Classification is used to split data into categories. But after cleaning and preprocessing the data and training our model, how do we know if our classification model performs well? That is where a confusion matrix comes into the picture.

A confusion matrix is used to measure the performance of a classifier in depth. In this simple guide to Confusion Matrix, we will get to understand and learn confusion matrices better.

Become the Highest Paid AI Engineer!

With Our Trending AI Engineer Master ProgramKnow More
Become the Highest Paid AI Engineer!

What Are Confusion Matrices, and Why Do We Need Them?

Classification Models have multiple categorical outputs. Most error measures will calculate the total error in our model, but we cannot find individual instances of errors in our model. The model might misclassify some categories more than others, but we cannot see this using a standard accuracy measure.

Furthermore, suppose there is a significant class imbalance in the given data. In that case, i.e., a class has more instances of data than the other classes, a model might predict the majority class for all cases and have a high accuracy score; when it is not predicting the minority classes. This is where confusion matrices are useful.

A confusion matrix presents a table layout of the different outcomes of the prediction and results of a classification problem and helps visualize its outcomes.

It plots a table of all the predicted and actual values of a classifier.

basic layout

Figure 1: Basic layout of a Confusion Matrix

How to Create a 2x2 Confusion Matrix?

We can obtain four different combinations from the predicted and actual values of a classifier:

confusion matrix

Figure 2: Confusion Matrix

  • True Positive: The number of times our actual positive values are equal to the predicted positive. You predicted a positive value, and it is correct.
  • False Positive: The number of times our model wrongly predicts negative values as positives. You predicted a negative value, and it is actually positive.
  • True Negative: The number of times our actual negative values are equal to predicted negative values. You predicted a negative value, and it is actually negative.
  • False Negative: The number of times our model wrongly predicts negative values as positives. You predicted a negative value, and it is actually positive.

Become the Highest Paid AI Engineer!

With Our Trending AI Engineer Master ProgramKnow More
Become the Highest Paid AI Engineer!

Confusion Matrix Metrics

classifier

Figure 3: Confusion Matrix for a classifier

Consider a confusion matrix made for a classifier that classifies people based on whether they speak English or Spanish.

From the above diagram, we can see that:

True Positives (TP) = 86

True Negatives (TN) = 79

False Positives (FP) = 12

False Negatives (FN) = 10

Become the Highest Paid AI Engineer!

With Our Trending AI Engineer Master ProgramKnow More
Become the Highest Paid AI Engineer!

Just from looking at the matrix, the performance of our model is not very clear. To find how accurate our model is, we use the following metrics:

  • Accuracy: The accuracy is used to find the portion of correctly classified values. It tells us how often our classifier is right. It is the sum of all true values divided by total values.

accuracy

Figure 4: Accuracy

In this case:

Accuracy = (86 +79) / (86 + 79 + 12 + 10) = 0.8823 = 88.23%

  • Precision: Precision is used to calculate the model's ability to classify positive values correctly. It is the true positives divided by the total number of predicted positive values.

precision

Figure 5: Precision

In this case,

Precision = 86 / (86 + 12) = 0.8775 = 87.75%

  • Recall: It is used to calculate the model's ability to predict positive values. "How often does the model predict the correct positive values?". It is the true positives divided by the total number of actual positive values.

recall

Figure 6: Recall

In this case,

Recall = 86 / (86 + 10) = 0.8983 = 89.83%

  • F1-Score: It is the harmonic mean of Recall and Precision. It is useful when you need to take both Precision and Recall into account.

f1score

Figure 7: F1-Score

In this case,

F1-Score = (2* 0.8775 * 0.8983) / (0.8775 + 0.8983) = 0.8877 = 88.77%

Scaling a Confusion Matrix

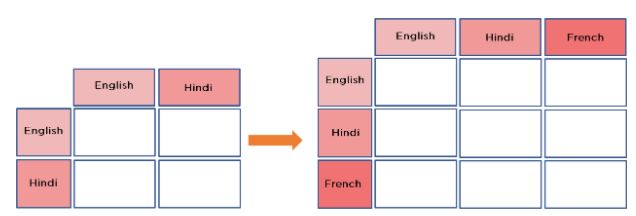

To scale a confusion matrix, increase the number of rows and columns. All the True Positives will be along the diagonal. The other values will be False Positives or False Negatives.

 scaling up

Figure 12: Scaling down our dataset

Now that we understand what a confusion matrix is and its inner working, let's explore how we find the accuracy of a model with a hands-on demo on confusion matrix with Python.

Become an AI and ML Expert in 2024

Discover the Power of AI and ML With UsEXPLORE NOW
Become an AI and ML Expert in 2024

Confusion Matrix With Python

We'll build a logistic regression model using a heart attack dataset to predict if a patient is at risk of a heart attack.

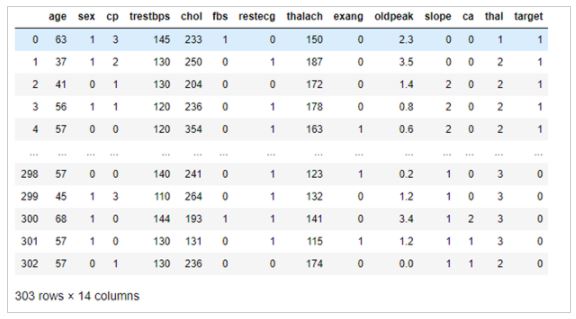

Depicted below is the dataset that we'll be using for this demonstration.

heart attack

Figure 9: Heart Attack Dataset

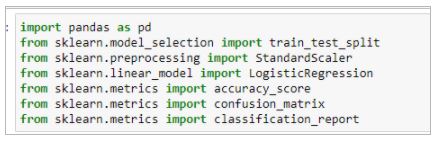

Let’s import the necessary libraries to create our model.                                            importing

Figure 10: Importing Confusion Matrix in python

We can import the confusion matrix function from sklearn.metrics. Let’s split our dataset into the input features and target output dataset.

splitting data

Figure 11: Splitting data into variables and target dataset

As we can see, our data contains a massive range of values, some are single digits, and some have three numbers. To make our calculations more straightforward, we will scale our data and reduce it to a small range of values using the Standard Scaler.

scaling down



Figure 12: Scaling down our dataset

Now, let's split our dataset into two: one to train our model and another to test our model. To do this, we use train_test_split imported from sklearn. Using a Logistic Regression Model, we will perform Classification on our train data and predict our test data to check the accuracy.

performing classification

Figure 13: Performing classification

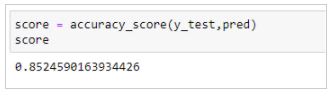

To find the accuracy of a confusion matrix and all other metrics, we can import accuracy_score and classification_report from the same library.

                                                               accuracy classifier

Figure 14: Accuracy of classifier

The accuracy_score gives us the accuracy of our classifier

data

Figure 15: Confusion Matrix for data

Using the predicted values(pred) and our actual values(y_test), we can create a confusion matrix with the confusion_matrix function.

Then, using the ravel() method of our confusion_matrix function, we can get the True Positive, True Negative, False Positive, and False Negative values.

extracting

Figure 16: Extracting matrix value

confusion metrics

 Figure 17: Confusion Matrix Metrics

Finally, using the classification_report, we can find the values of various metrics of our confusion matrix.

Looking forward to making a move to the programming field? Take up the Caltech Post Graduate Program In AI And Machine Learning and begin your career as a professional Python programmer

Become the Highest Paid AI Engineer!

With Our Trending AI Engineer Master ProgramKnow More
Become the Highest Paid AI Engineer!

Conclusion

In this article - The Best Guide to Confusion Matrix, we have looked at what a confusion matrix is and why we use confusion matrices. We then looked at how to create a 2X2 confusion matrix and calculate the confusion matrix metrics using it. We took a look at how confusion matrices can be scaled up to include more than two classification classes and finally got hands-on experience with confusion matrices by implementing them in Python

Was this article on the confusion matrix useful to you? Do you have any doubts or questions for us? Mention them in this article's comments section, and we'll have our experts answer them for you at the earliest!
