Gaussian Mixture Model (GMM) in Machine Learning

What are Gaussian Mixture Models?

A Gaussian Mixture Model, or GMM, is just a way to describe data that seems to come from more than one source. Instead of drawing one smooth curve through everything, GMM says, “Let’s assume this dataset is made up of a bunch of overlapping bell-shaped curves.” Each of these curves is called a Gaussian component, and together they form the full picture.

Each of those components has three things:

• A mean (​that’s μₖ), which tells us where the center of the curve is.
• A covariance (​∑ₖ), which explains how wide the curve is and how it's shaped, especially when you're dealing with more than one variable.
• And a mixing weight (πₖ​), which says how much that particular curve contributes to the overall model. All the weights across components should add up to 1.

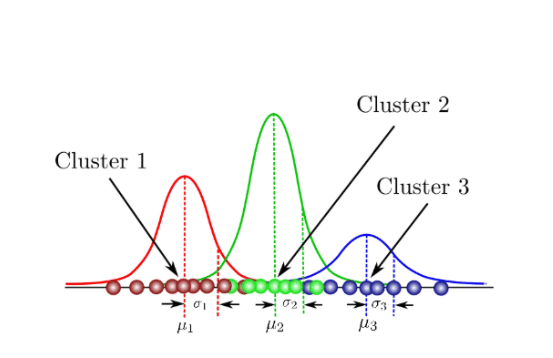

(Source: Medium)

The actual formula for a GMM looks like this:

p(x) = ∑ₖ πₖ · 𝒩(x | μₖ, Σₖ)

That’s just saying, for each component k, you figure out the probability of a data point x under its own Gaussian, then scale it by that component’s weight πₖ​, and finally sum across all components.

The inner part, the Gaussian distribution, is defined as:

𝒩(x | μₖ, Σₖ) = (1 / sqrt((2π)^D · |Σₖ|)) · exp[ -½ · (x - μₖ)ᵀ · Σₖ⁻¹ · (x - μₖ) ]

Don’t worry if this looks heavy. What it does is give us the likelihood of a point x coming from a specific Gaussian. The cool part? When you add up all these Gaussians weighted by their importance, you get a smooth, flexible way to model pretty much any kind of clustered data.

Become an AI and Machine Learning Expert

With Purdue University's Post Graduate ProgramExplore Program

Gaussian Mixture Model vs K-means

Both Gaussian Mixture Models and K-means are used to find patterns in unlabeled data, but they go about it differently. Here’s a side-by-side look at how they compare across key aspects:

1. Type of Clustering

• K-means does hard clustering. That means each data point is assigned to just one cluster, no in-betweens.
• GMM, on the other hand, does soft clustering. Instead of forcing a point into one group, it gives you probabilities, like 60% chance it belongs to Cluster A and 40% to Cluster B.

2. Cluster Shape

• K-means assumes clusters are circular or spherical, and works best when the clusters are similar in size and spread.
• GMM is more flexible. It uses covariance to model ellipsoidal shapes, which means it handles elongated or uneven clusters better.

3. Output

• K-means gives you cluster labels, simple and direct.
• GMM gives you probabilities for each point across all clusters. This is useful when your data isn’t clearly separated and has some overlap.

4. Distance vs. Density

• K-means groups data based on distance from the cluster center. It doesn’t consider how dense the data is around that center.
• GMM uses the concept of probability density, it fits actual distributions to the data. This lets it model clusters that are shaped and sized differently.

5. Interpretability & Use Case

• K-means is easier to interpret and faster to run. It’s great for simple, clean datasets where boundaries between clusters are clear.
• GMM is better for more complex situations, especially when you suspect your data points might belong partially to more than one group.

Join our 4.7 ⭐ rated program, trusted by over 3600 learners who have successfully launched their careers as AI professionals. Start your learning journey with us today! 🎯

Gaussian Mixture Model Formulas

Alright, let’s now look at the formulas that drive Gaussian Mixture Models (GMMs). These equations explain how GMM figures out which data points belong to which cluster, and by how much:

• How likely is it that a point belongs to a cluster?

So imagine you have a data point, and you want to know how likely it is that it came from cluster k. In GMM, that’s written as:

p(zₙ = k | xₙ)

Here, zₙ is a hidden tag, it’s 1 if the point is from cluster k, and 0 if it’s not. You never actually get to see this zₙ, but you’ll estimate its probability when training the model.

• How common is each cluster?

Each cluster has a weight, or "mixing coefficient," which tells us how big or dominant that cluster is overall.

p(zₙ = k) = πₖ

And just like any proper set of probabilities, they need to add up to 1:

∑ₖ πₖ = 1

So if a cluster has a big πₖ, it covers more of the data.

• What’s the likelihood of a point, given the cluster?

If you already know a point came from a specific cluster, the likelihood of seeing it there is just the regular Gaussian formula:

p(xₙ | zₙ = k) = 𝒩(xₙ | μₖ, Σₖ)

Where μₖ is the cluster’s mean, and Σₖ is how spread out it is (the covariance matrix).

• What’s the chance of both the point and the cluster?

This one’s simple, you just multiply the prior (mixing coefficient) and the likelihood:

p(xₙ, zₙ = k) = πₖ · 𝒩(xₙ | μₖ, Σₖ)

This tells you the joint probability of the point and cluster together.

• What’s the total probability of seeing a data point?

To get the overall chance of seeing a point, no matter which cluster it came from, you just add up all the cluster-wise contributions:

p(xₙ) = ∑ₖ πₖ · 𝒩(xₙ | μₖ, Σₖ)

This is the core GMM equation. It treats your data as being drawn from a blend of several Gaussians.

• How likely is the entire dataset?

Now zoom out. For a dataset with N points, the full likelihood is just the product of each individual point’s probability:

p(X | θ) = ∏ₙ ∑ₖ πₖ · 𝒩(xₙ | μₖ, Σₖ)

Here, θ includes all the parameters, means, covariances, and weights.

• Let’s make it easier: log-likelihood

Working with products is messy, so we take the log to simplify things (and to help with optimization):

log p(X | θ) = ∑ₙ log ( ∑ₖ πₖ · 𝒩(xₙ | μₖ, Σₖ) )

This log-likelihood is what we actually maximize during training.

• So which cluster does the point really belong to?

Here’s where it all comes together. After all this, the big question is: what’s the probability that a point xₙ came from cluster k? That’s your posterior probability, and we get it using Bayes’ rule:

p(zₙ = k | xₙ) = (πₖ · 𝒩(xₙ | μₖ, Σₖ)) / ∑ⱼ πⱼ · 𝒩(xₙ | μⱼ, Σⱼ)

This formula gives you a soft assignment, basically, how much each point “belongs” to each cluster.

Level Up Your AI and Machine Learning Career

With Our Trending Post Graduate ProgramLearn More Now

What are the Key Components of the Gaussian Mixture Model?

To get what GMM is all about, you just need to understand a few core ideas. These are the parts that make the whole system tick, and once you’re familiar with them, everything else starts to make more sense.

• Gaussian Distribution: At its core, GMM assumes your data comes from a mix of several Gaussian curves. Each of these has its own average (μ) and spread (Σ). These curves can overlap, stretch in different directions, and adjust to match the shape of your data. Instead of drawing hard lines, they form smooth clusters based on probability.

• Expectation-Maximization (EM): This is the method GMM uses to figure out the best parameters for each Gaussian. It does this by repeatedly estimating how likely each point is to belong to a cluster and then adjusting the Gaussians based on those estimates. Think of it like fine-tuning your guesses, step by step, until things line up well.

• Soft Clustering: One of the coolest things about GMM is that it doesn’t force a data point to choose just one cluster. Instead, it assigns a probability to each one. A point could belong 70% to one cluster and 30% to another. This softer approach makes GMM better at handling real-world data, especially when clusters aren’t clearly separated.
• Latent Variables: These are hidden labels that help behind the scenes. For each data point, there’s a variable that tells us which Gaussian it probably came from, but we don’t directly see this. Instead, GMM uses these “invisible” tags to guide how it groups data. They’re essential for understanding how the model sorts things out.

Learn 30+ AI skills and tools in just 6 months with our Professional Certificate in AI and Machine Learning! 🎯

How Do Gaussian Mixture Models (GMM) Work?

Now that we've covered the components of a Gaussian Mixture Model, let’s look at how those pieces come together during execution. Here's a structured overview of the process.

1. Initialization of Parameters

The model begins by initializing its parameters: the means (μₖ), covariance matrices (Σₖ), and mixing coefficients (πₖ) for each of the K Gaussian components. This initialization can be done randomly or with techniques like K-means to set more stable starting points.

2. Calculating Responsibilities

Next, GMM calculates the responsibility for each data point, this is the probability that a given point was generated by a specific Gaussian component. These responsibilities are computed using the current parameter values and the Gaussian probability density function:

γ(zₙₖ) = (πₖ · 𝒩(xₙ | μₖ, Σₖ)) / ∑ⱼ πⱼ · 𝒩(xₙ | μⱼ, Σⱼ)

Each data point gets a soft assignment across all clusters, not a hard label.

3. Updating Parameters

Using these responsibilities, the model updates its parameters:

• Means (μₖ) are updated to reflect the weighted average of the data points assigned to that cluster.
• Covariances (Σₖ) are updated based on the spread of points around the new means.
• Mixing coefficients (πₖ) are recalculated to reflect the proportion of points assigned (probabilistically) to each component.

These updates follow the Maximum Likelihood Estimation (MLE) framework, using the Expectation-Maximization (EM) algorithm.

4. Iterative Convergence

The expectation (E-step) and maximization (M-step) repeat until convergence. Usually, this means the log-likelihood improvement falls below a certain threshold or a set number of iterations is reached. Since the log-likelihood is guaranteed to improve (or stay the same) at each iteration, the algorithm moves toward a local optimum.

5. Final Output

Once converged, the model outputs:

• The optimized parameters (μₖ, Σₖ, πₖ),
• A soft clustering of the dataset (responsibility matrix), and
• Likelihood scores for each data point.

This allows for probabilistic cluster membership, making GMM ideal for datasets with overlapping or elliptical clusters.

Learn Core AI Engineering Skills and Tools

With Our Unique AI Engineer ProgramExplore Program

Gaussian Mixture Model Expectation-Maximization (EM) Algorithm

Once you’ve got the basics of GMM down, multiple clusters, each shaped like a Gaussian, the next step is figuring out how to learn the best parameters for those Gaussians.

That’s where the Expectation-Maximization algorithm comes in. It’s designed for situations just like this, where some part of the data structure is hidden (like which cluster a point belongs to), but we still want to estimate the underlying model.

Let’s walk through how EM works in the context of Gaussian Mixture Models.

Step 1: Initialize Parameters

You start with initial guesses for:

• Cluster means: μₖ
• Covariance matrices: Σₖ
• Mixing weights: πₖ

These can be chosen randomly or by running a quick K-means to set up sensible starting points.

Step 2: Expectation Step (E-Step)

In the E-step, you estimate how likely each data point belongs to each Gaussian component. This is captured by the responsibility, defined as:

γ(zₙₖ) = (πₖ · 𝒩(xₙ | μₖ, Σₖ)) / ∑ⱼ πⱼ · 𝒩(xₙ | μⱼ, Σⱼ)

Here:

• xₙ is the nth data point
• γ(zₙₖ) is the probability that point xₙ belongs to cluster k
• 𝒩(xₙ | μₖ, Σₖ) is the multivariate Gaussian distribution evaluated at xₙ

Each data point gets soft-assigned across all clusters.

Step 3: Maximization Step (M-Step)

Now, you update the parameters using the responsibilities:

πₖ = (1 / N) · ∑ₙ γ(zₙₖ)

(Each πₖ becomes the average responsibility of cluster k across all data points.)

μₖ = (∑ₙ γ(zₙₖ) · xₙ) / ∑ₙ γ(zₙₖ)

(The new mean is a weighted average of all points, weighted by their soft membership.)

Σₖ = (∑ₙ γ(zₙₖ) · (xₙ − μₖ)(xₙ − μₖ)ᵀ) / ∑ₙ γ(zₙₖ)

(The new covariance captures the spread of the data within each cluster.)

Step 4: Check Log-Likelihood and Repeat

At every iteration, you check how well the model is doing by computing the log-likelihood of the data:

log p(X) = ∑ₙ log(∑ₖ πₖ · 𝒩(xₙ | μₖ, Σₖ))

If the log-likelihood doesn’t improve much compared to the previous step, or you hit a max iteration limit, you stop.

After EM: What You Get

Once the EM loop converges, you’ll have:

• Well-estimated parameters (πₖ, μₖ, Σₖ)
• A soft clustering of your data via γ(zₙₖ)
• A generative model that can be used for clustering, density estimation, or anomaly detection

Land High-paying AI and Machine Learning Jobs

With Our Comprehensive Post Graduate ProgramLearn More Now

Implementation of GMM in Python

For a simple and quick GMM implementation, the Iris dataset is a great pick. It’s low-dimensional, easy to visualize, and ideal for testing how the Expectation-Maximization  algorithm works in practice.

Step 1: Initialize with KMeans

Before diving into EM, we need initial guesses for our parameters. A clean way to get started is by running KMeans to get the initial cluster centers (mu_k). Each cluster is assigned an equal mixing coefficient (pi_k = 1.0 / K) and an identity matrix for the covariance (cov_k = I).

In Python, you'd typically wrap this in an initialize_clusters() function using:

kmeans = KMeans(n_clusters).fit(X)

mu_k = kmeans.cluster_centers_

The clusters are then stored in a dictionary format with their corresponding pi_k, mu_k, and cov_k values.

Step 2: Expectation Step (E-step)

With initialized parameters, we compute the soft cluster assignments. For every point, we calculate the likelihood that it came from each Gaussian using the multivariate normal distribution. Then, normalize across all components to get the responsibilities (γₙₖ).

gamma_nk[:, k] = (pi_k * gaussian(X, mu_k, cov_k)).ravel()

After calculating values for all components, we normalize using:

gamma_nk /= np.expand_dims(totals, 1)

This step gives us a responsibility matrix with shape [n_samples, n_clusters].

Step 3: Maximization Step (M-step)

Once we have the responsibilities, it’s time to update the parameters. Each mu_k is recalculated as the weighted average of all data points, weighted by γₙₖ.

The mixing coefficient pi_k becomes the average responsibility for that component, and the covariance matrix is updated using the weighted deviations.

The common formulas:

mu_k = ∑(γₙₖ · xₙ) / ∑γₙₖ

cov_k = ∑(γₙₖ · (xₙ - μₖ)(xₙ - μₖ)ᵀ) / ∑γₙₖ

pi_k = ∑γₙₖ / N

This is coded inside the maximization_step() function.

Step 4: Log-Likelihood Tracking

To check if we’re getting closer to a good solution, we monitor the log-likelihood after each round:

log_likelihood = np.sum(np.log(totals))

We repeat the E and M steps until the change in log-likelihood becomes negligible or a set number of iterations is reached. Typically, GMM converges in fewer than 20 iterations for datasets like Iris.

Step 5: Visual Checks (Optional)

If you’re running this in Jupyter or similar, you’ll probably want to visualize the results using matplotlib. Scatter plots with cluster color-coding, ellipses for covariance, or even an animation to show clustering over time, all help confirm if your model is behaving well.

Want to Get Paid The Big Bucks?! Join AI & ML

Professional Certificate Program in AI and MLExplore Program

What are the Advantages of GMMs?

Now, let’s look at some solid reasons why Gaussian Mixture Models are often preferred in clustering tasks, especially when you're dealing with data that doesn’t fit neatly into boxes.

Whether you’re exploring the basics of Gaussian mixture model in machine learning or tweaking a GMM model in production, these perks make it a strong choice.

• It’s Not All or Nothing (Soft Clustering)

Unlike K-means, which just throws each point into one cluster, Gaussian mixture model clustering is a bit more thoughtful.

It gives you a probability score, basically saying, “Hey, this point is 70% likely to be in Cluster A, but also 30% in Cluster B.” That soft assignment helps when things aren’t black and white.

• It Handles Odd-shaped Clusters Just Fine

A big win with GMMs is that they don’t expect your data to form perfect circles or be evenly spaced out. They use covariance to model ellipses, so they’re more forgiving when clusters stretch, lean, or overlap in weird ways. You’re not boxed in by the limitations of spherical clustering.

• It Thinks in Terms of Probability, Not Just Distance

Traditional clustering methods use distance to decide who belongs where. But GMMs ask: “How likely is it that this point came from that distribution?” That’s way more flexible, especially when your features don’t follow a clean, uniform scale.

• Plays Nicely with the EM Algorithm

GMMs pair perfectly with the Expectation-Maximization algorithm. It’s an iterative method that gradually improves the clustering by estimating better parameters each time. And yes, initializing with K-means can help it get a good head start. The whole process is cleaner than it sounds once you get used to the loop.

• More Interpretable in Real-Life Scenarios

When you're working on real data, especially in areas like speech recognition, anomaly detection, or bioinformatics, clusters rarely behave in predictable ways. The GMM model allows you to model that uncertainty and shape, which makes the insights feel a lot more natural and accurate.

Level Up Your AI and Machine Learning Career

With Our Trending Post Graduate ProgramLearn More Now

What are the Limitations of GMMs?

Alright, now that we’ve talked about the perks, let’s be real, Gaussian Mixture Models aren’t perfect. Like most machine learning tools, they have their quirks and limitations. So before you fully commit to using a GMM model for your clustering, here are a few things to keep in mind.

• Sensitive to Initialization

GMMs rely on a good starting point. If your initial means or covariances are way off, the EM algorithm might settle into a poor local maximum. That’s why a smart initialization (like borrowing centroids from K-means) isn’t just helpful, it’s kind of essential.

• Assumes Gaussian Distribution

True to its name, Gaussian mixture model clustering assumes that the data in each cluster follows a normal distribution. If your data doesn’t even come close to that shape, the model can struggle to make sense of it or force-fit the curves.

• Prone to Overfitting

If you pick too many components (clusters), GMMs will happily try to explain every little variation in your data, which sounds great, but leads to overfitting. You’ll end up with a model that looks impressive on paper but performs poorly in real-world scenarios.

• Struggles with High Dimensions

Once you move into high-dimensional data, the number of parameters GMM needs to estimate grows really fast, especially those covariance matrices. Without enough data to back it up, things can quickly get noisy and unstable.

• Can Be Computationally Heavy

Compared to simpler models like K-means, GMMs can take longer to converge, especially on large datasets. Every iteration of the EM algorithm includes matrix calculations and density evaluations, so runtime isn’t always ideal if you're short on compute.

Stuck in your career or overwhelmed by choices? Let SimpliMentor show you what to learn and how to grow. Ask Anything!

Conclusion

Gaussian Mixture Models are a smart pick when data clusters aren’t clearly separated. They don’t just assign a point to one cluster, they give a probability for each cluster, which helps when boundaries are blurry. That makes the Gaussian mixture model in machine learning ideal for soft clustering tasks, especially when patterns in the data overlap.

While the method is backed by strong math and a solid optimization process, it’s not always the fastest or most scalable option. Still, the GMM model stands out for its flexibility and depth, making it a valuable tool for anyone working on complex clustering problems with mixed or uncertain data.

If you want to learn more about models like GMM and how they’re used in real-world machine learning, check out the Professional Certificate in AI and Machine Learning from Simplilearn. It’s a great way to build practical skills and understand how these tools work.

FAQs

1. When to use Gaussian Mixture Models?

Use GMMs when data may come from overlapping subgroups or when soft clustering is needed over hard assignments.

2. What is the Gaussian Mixture Model for image clustering?

It groups similar pixels based on color or texture using multiple Gaussian distributions to segment images smoothly.

3. What is the GMM model used for?

GMM is used for clustering, density estimation, anomaly detection, and pattern recognition in complex datasets.

4. What are the applications of the Gaussian Mixture Model?

Used in speech recognition, image segmentation, customer segmentation, bioinformatics, and financial data modeling.

5. How do you choose the number of components in a GMM?

Use model selection metrics like AIC or BIC to find the optimal number of Gaussian components.

6. Is Gaussian Mixture Model supervised or unsupervised learning?

GMM is an unsupervised learning method mainly used for clustering without labeled data.
