A Histogram is a column chart that shows the frequency of the occurrences of a variable in the specified range. It is useful for producing data distributions and charts. You can analyze and interpret the distribution of data quickly and easily.

Creating a Histogram in Excel

Excel has an inbuilt Histogram chart option. To add a Histogram chart, follow these steps:

  • Select the range of cells.

select range

  • On the Insert tab, go to the Charts Group and click the Histogram symbol.

insert histogram

  • Click on Histogram.

Result:

output

To change the bin size and number of bins:

  • Right-click on the horizontal axis and click Format Axis.

format axis

Become The Highest-Paid Business Analysis Expert

With Business Analyst Master's ProgramExplore Now
Become The Highest-Paid Business Analysis Expert

The format axis pane appears. You can edit the bin width and number of bins.

A bin range is a range of values that specifies the limit for each column of the histogram.

axis option

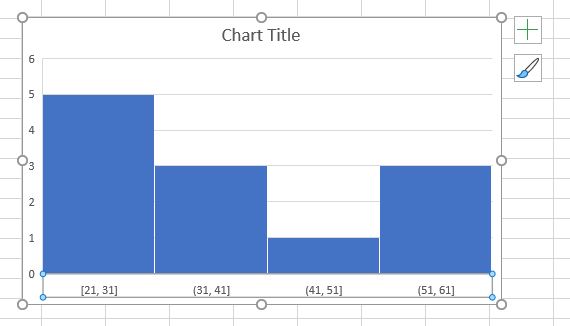

Result:

output 2016

Creating a Histogram using Data Analysis Toolpak

To create a histogram using the Data Analysis Toolpak, you first need to install the Analysis Toolpak add-in.

To install the Data Analysis Toolpak add-in:

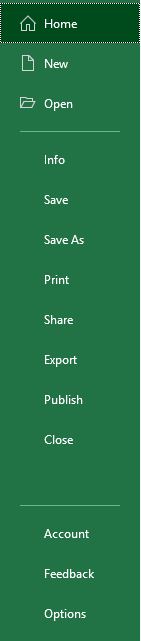

  • Click the File tab and then select ‘Options’.

options

  • In the Excel Options dialog box, select Add-ins in the navigation pane.

add ins

  • In the Manage drop-down, select Excel Add-ins and click Go.

manage

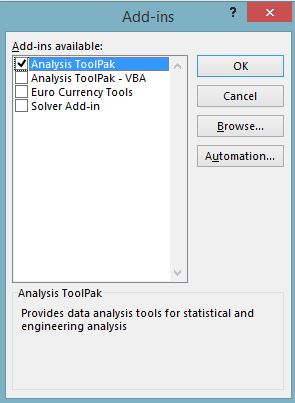

  • In the Add-ins dialog box, select Analysis Toolpak and click OK.

toolpak

This will install the Analysis Toolpak.

Become The Highest-Paid Business Analysis Expert

With Business Analyst Master's ProgramExplore Now
Become The Highest-Paid Business Analysis Expert

Create Histogram

To create a Histogram, follow the steps mentioned below:

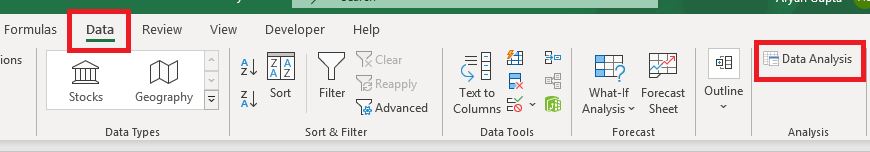

  • Go to the Data tab and click Data Analysis.

da histogram

  • In the Data Analysis dialog box, select Histogram.

data analysis

  • In the Histogram dialogue box, select the Input range, Bin range, and Output range. Checkmark the chart output.

histogram argument

  • Click OK.

histogram output

The first bin shows all the values below it. In the above case, 20 shows 0 values, which shows that there are 0 employees that are less than age 20.

Gain expertise in the latest Business analytics tools and techniques with the Business Analyst Master's Program. Enroll now!

FAQs

1) What is the Difference Between a Histogram and a Bar Chart?

Unlike bar charts, which represent categorical data with discrete bars, histograms display continuous data, and the bars are connected to each other, showing the distribution of a dataset.

2) How Do You Determine the Number of Bins in a Histogram?

The number of bins can be chosen based on the size of the data set and the level of detail you want to represent. Common methods include the Sturges, Rice, or Square-root rule, or using software defaults.

3) Are There Any Common Mistakes to Avoid When Making a Histogram?

Yes, common mistakes include choosing inappropriate bin sizes, not labeling axes clearly, and misinterpreting the gaps or peaks in the histogram.

4) Can Histograms Be Used for Both Large and Small Data Sets?

Histograms are versatile and can be used for both large and small data sets, though they are more informative with larger datasets as patterns become more evident.

Conclusion

In this article, you have learned about Histograms in MS Excel. You made a histogram chart and adjusted the value and range of the bin. Histograms are useful when you want to analyze an enormous set of data quickly.

Boost your analytics career with powerful new Microsoft Excel skills by taking the Business Analytics with Excel course, which includes Power BI training

This Business Analytics certification course teaches you the basic concepts of data analysis and statistics to help data-driven decision making. This training introduces you to Power BI and delves into the statistical concepts that will help you devise insights from available data to present your findings using executive-level dashboards.

Do you have any questions? Feel free to ask them in this article’s comments section, and our experts will promptly answer them for you!
