Sliding Window Protocol in Computer Networks: Working, Types, and Examples

TL;DR: The sliding window protocol is a flow-control technique that lets a sender transmit multiple frames before waiting for an acknowledgment, instead of sending one frame at a time like Stop-and-Wait. The "window" is the set of frames the sender can have in transit at once, and it slides forward as acknowledgments arrive. The three main types are One-Bit Sliding Window, Go-Back-N ARQ, and Selective Repeat ARQ.

Sending one frame and waiting for its acknowledgment before sending the next frame wastes time, especially over networks with significant round-trip delay. The sliding window protocol addresses this problem by allowing a sender to send multiple frames, up to a system-defined limit (the window size), before waiting for acknowledgments. The purpose of this article is to discuss the sliding window protocol by describing what it is, how it works in computer networks, what the three types are, how the window size is related to the sequence numbers using a mathematical formula, the throughput calculation compared to the Stop-and-Wait protocol, and the advantages, disadvantages, and applications of sliding window protocols.

What Is Sliding Window Protocol in Computer Networks?

The sliding window protocol is a flow-control and reliable-delivery mechanism used at the data link and transport layers, most notably in TCP, that lets a sender transmit multiple frames before requiring an acknowledgment for each one. Both the sender and receiver maintain a "window," a range of sequence numbers currently valid for sending or accepting frames. As acknowledgments come in, the window slides forward to cover the next set of frames, which is where the protocol gets its name.

Core Concepts

• Window size: It determines how many frames or bytes the transmitting side can send before it stops and waits for a reply.
• Sender window and receiver window: The sliding window protocol uses these to track frames. The sender's window stores sequence numbers the sender can send, while the receiver's window stores sequence numbers it expects to receive.
• Acknowledgments: ACKs tell the sender that frames arrived at the receiver. Sliding window can use either cumulative ACKs (sending a cumulative ACK for all frames up to a given one) or SACKs / Selective ACKs (telling the sender which frames were received individually).
• Timers: Each sent frame has a timer, and if it runs out because the receiver didn't reply, the sender must retransmit the frame.
• Sequence numbers: Every frame sent needs a unique sequence number so that the receiver can detect duplicates, out-of-order frames, and missing frames.

Learn from Top Cyber Security Mentors!Cyber Security Expert Master's ProgramExplore Program

How Sliding Window Works

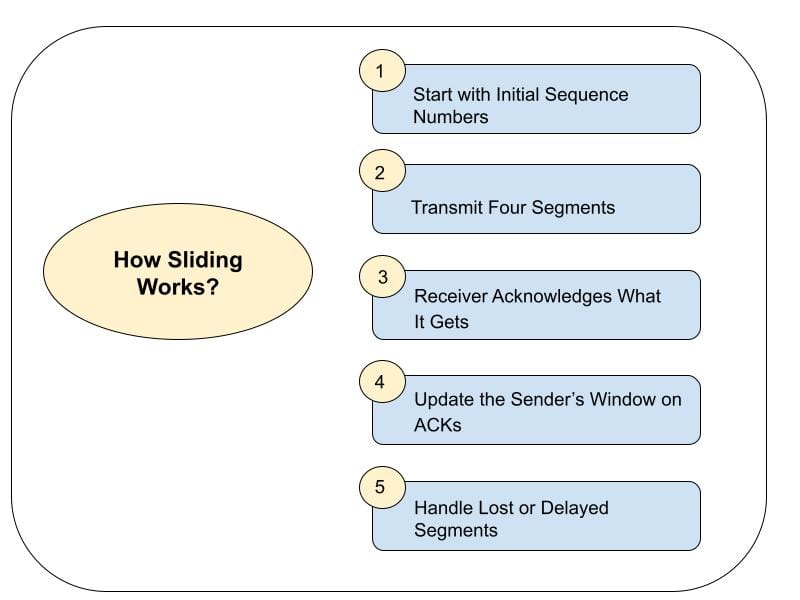

1. Begin with the initial sequence numbers. Both the sender and the receiver start with the same sequence number and window size.
2. Transmit many segments. Here, the sender transmits several frames equal to the window size without receiving any acknowledgment.
3. Receiver acknowledges what it gets. The receiver sends ACKs (cumulative or selective) for the frames it successfully receives.
4. Update the sender's window on ACKs. As acknowledgments arrive, the sender's window slides forward, freeing up room to send new frames.
5. Handle lost or delayed segments. If an expected ACK doesn't arrive before the timer expires, the sender retransmits, with the exact retransmission behavior depending on the protocol type (see below).

Types of Sliding Window Protocol

There are three classic types of sliding window protocols, distinguished mainly by window size and how they recover from lost or corrupted frames.

One-Bit Sliding Window Protocol

The simplest form, where the window size is fixed at exactly 1 for both sender and receiver, using only a single bit (0 or 1) for the sequence number. The sender transmits one frame and waits for its acknowledgment before sending the next, alternating the sequence bit between 0 and 1 each time. This makes it functionally equivalent to Stop-and-Wait, and it exists mainly as the conceptual starting point before scaling up to larger windows: it guarantees reliable, in-order delivery, but with none of the throughput benefit a larger window provides.

Go-Back-N ARQ

The sender can have multiple frames in transit (window size > 1), but the receiver only accepts frames in strict order and discards anything that arrives out of sequence. If an error occurs or a frame is lost, the sender retransmits that frame and every frame sent after it, even ones the receiver already received correctly.

Selective Repeat ARQ

Like Go-Back-N, the sender can have multiple frames in transit, but the receiver buffers out-of-order frames instead of discarding them. When an error occurs, only the specific frame(s) with errors are re-sent, not everything after them. This is more bandwidth-efficient but requires more buffer memory at the receiver.

Window Size and Sequence Number Limits

The maximum usable window size isn't arbitrary—it's constrained by how many sequence numbers are available, which depends on how many bits represent them.

• Go-Back-N: maximum window size = 2^n − 1, where n is the number of bits used for the sequence number.
• Selective Repeat: maximum window size = 2^(n−1), exactly half of Go-Back-N's limit for the same number of bits.

Worked example (n = 3 bits): With 3 bits, sequence numbers range from 0 to 7 (8 possible values).

• Go-Back-N's maximum window size = 2³ − 1 = 7.
• Selective Repeat's maximum window size = 2^(3−1) = 4.

Selective Repeat needs a smaller window than Go-Back-N because it buffers out-of-order frames. If its window were as large as Go-Back-N's, the receiver could no longer reliably distinguish a retransmitted old frame from a new one carrying the same sequence number, since sequence numbers wrap around and get reused.
